Technical data
17 parametersIdentification
- Manufacturer
- FAG
- Type
- Locknut
- Part number (SKU)
- KM14#N1
- EAN
- 4012801174343
Dimensions

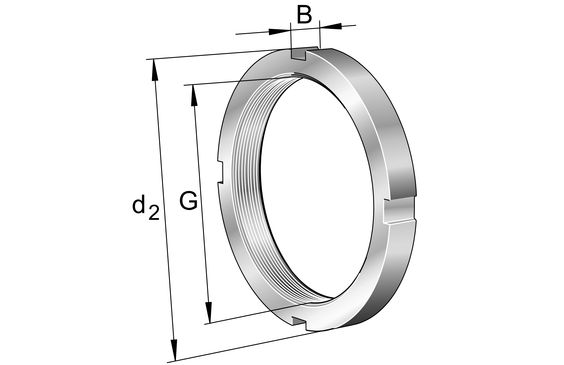

- Width B
- 12 mm
- Mass
- 272 g
Full manufacturer specification11 parameters · expand
- Axial load capacity, static
- 118000.0 N

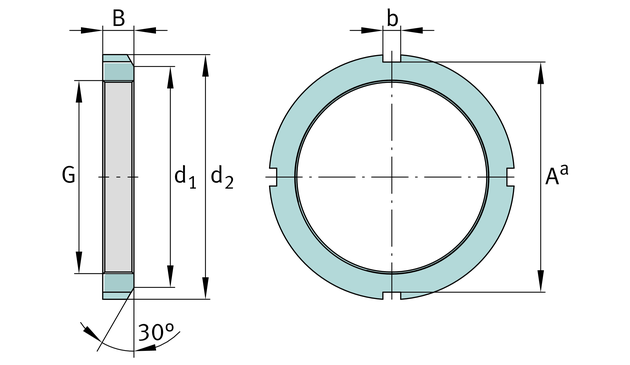

- Chamfer angle
- 30.0 °
- Chamfer diameter
- 85.0 mm
- Fuse
- MB14
- Groove base distance
- 85.0 mm
- Outerside diameter
- 92.0 mm
- PFAS
- no
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Thread
- M70x2
- Width retaining slot
- 8.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Accessories › Locknuts
- eCl@ss class
- 23-11-07-02
- UNSPSC
- 31161727
Description
Locknuts KM, main dimensions to DIN 981
The same bearing from other manufacturers (7 designations)
Same size and design — suffix notation differs between brands.
FAG
KM14
original — this page
equivalent designation
DAG
630451
GHH
705 29083 000
NSK
KM14
SCSS
212036
SKF
KM14
SNR
KM14
STEYR
KM14
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
For mounting this bearing
The sleeve, nut and lock washer needed to mount the bearing, followed by matching housings. All from our catalogue.
KM14
Locknut
od EUR 11.42net
+ VAT 23% = EUR 14.05 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 11.22 | −2% |
| from 10 pcs | EUR 11.10 | −3% |
| from 25 pcs | EUR 10.87 | −5% |
| from 50 pcs | EUR 10.64 | −7% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
