Description
Drawn cup needle roller bearings with open ends HK, to DIN 618/ISO 3245
INA
HK2538-ZW
Drawn cup needle roller bearing open end
od EUR 6.99z VAT
netto EUR 5.68 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HK2538-ZW—
EUR 6.99
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HK2538-ZW#N
EAN4054372503771
Masa63.224 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup needle roller bearing open end
- Part number (SKU)
- HK2538-ZW#N
- EAN
- 4054372503771

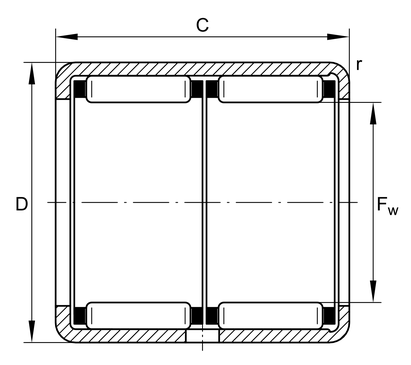

Dimensions
- Outside diameter D
- 32 mm
- Mass
- 63.224 g
Load ratings and operation
- Dynamic load rating C
- 34000 N
- Static load rating C₀
- 66000 N
- Limiting speed
- 10200 1/min
Full manufacturer specification16 parameters · expand
- Fatigue load limit, radial
- 8600.0 N
- Lubricant
- Without
- Minimum chamfer dimension
- 0.8 mm
- Number of rows
- 2
- Operating temperature max.
- 140.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Reference speed
- 7300.0 1/min
- RoHS
- RoHS compliant
- Sealing ring
- SD25X32X4
- Sealing ring 2
- G25X32X4
- Suitable inner rings IR
- IR20X25X38,5-XL
- Suitable inner rings LR
- LR20X25X38,5
- Under roller diameter
- 25.0 mm
- Width, outer ring
- 38.0 mm
