Description
Drawn cup needle roller bearings with open ends HK, to DIN 618/ISO 3245
INA
HK2020-B
Drawn cup needle roller bearing open end
od EUR 3.51z VAT
netto EUR 2.85 · cena detaliczna
EUR 4.67−25%
HK2020-B—
EUR 4.67
EUR 3.51Cheaper in larger quantities
| from 10 pcs | EUR 3.72 | −2% |
| from 50 pcs | EUR 3.64 | −4% |
| from 2000 pcs | EUR 3.45 | −9% |
In stock (40 pcs)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)HK2020-B#N250
EAN4054362394303
Opakowanie250 szt.
Minimum order250 szt.
Masa23.45 g
Ten towar sprzedawany jest w opakowaniach po 250 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup needle roller bearing open end
- Part number (SKU)
- HK2020-B#N250
- EAN
- 4054362394303

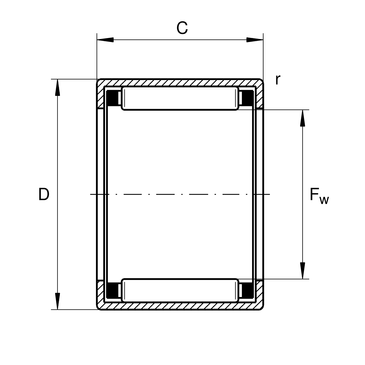

Dimensions
- Outside diameter D
- 26 mm
- Width B
- 20 mm
- Mass
- 23.45 g
Load ratings and operation
- Dynamic load rating C
- 15700 N
- Static load rating C₀
- 26000 N
- Limiting speed
- 12700 1/min
- Sealing
- Without
Full manufacturer specification19 parameters · expand
- Coating
- Without
- Fatigue load limit, radial
- 3600.0 N
- Limiting speed for grease lubrication
- 7600.0 1/min
- Lubricant
- Without
- Lubrication hole
- Without
- Minimum chamfer dimension
- 0.8 mm
- Operating temperature max.
- 140.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Reference speed
- 9300.0 1/min
- RoHS
- RoHS compliant
- Sealing
- Without
- Sealing ring
- SD20X26X4
- Sealing ring 2
- G20X26X4
- Suitable inner rings IR
- IR17X20X20,5-XL
- Suitable inner rings LR
- LR17X20X20,5
- Under roller diameter
- 20.0 mm
- Width, outer ring
- 20.0 mm
