Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- GNE100-XL-KRR-B#N1>1
- EAN
- 4064327885890

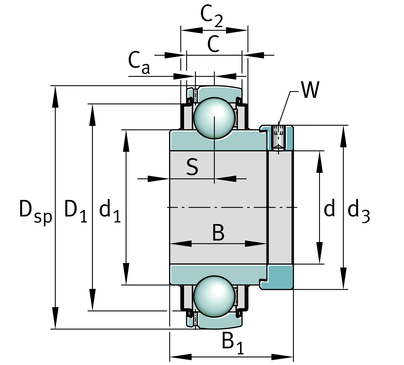

Dimensions
- Bore d
- 100 mm
- Outside diameter D
- 215 mm
- Width B
- 86 mm
- Mass
- 11.41 kg
Load ratings and operation
- Dynamic load rating C
- 174000 N
- Static load rating C₀
- 140000 N
- Sealing
- KRR
Full manufacturer specification15 parameters · expand
- Calculation factor
- 13.1
- Category
- XL
- Distance to lubrication hole
- 16.7 mm
- Fatigue load limit, radial
- 5800.0 N
- Locking collar total width
- 109.4 mm
- Outer ring width
- 49.0 mm
- Outside diameter locking collar/locknut
- 145.0 mm
- Outside diameter seal
- 182.8 mm
- PFAS
- no
- Raceway distance
- 39.5 mm
- Rib diameter inner ring
- 137.1 mm
- Sealing
- KRR
- Sealing total width
- 59.4 mm
- Shape of outer surface
- B
- Width of flats
- 6.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Ball Bearings › Insert Ball Bearings and Belt Tension Pulleys › Insert Ball Bearings
- eCl@ss class
- 23-05-08-02
- UNSPSC
- 31171504
Description
Radial insert ball bearings GNE..-KRR-B, spherical outer ring, location by eccentric locking collar, R seals on both sides
For mounting this bearing
Accessories matching this item. All from our catalogue.
INA
GNE100-XL-KRR-B
Common designation: GNE100 KRR B
Radial insert ball bearing
⌀100 × 215 × 86 mm
od EUR 580.32net
+ VAT 23% = EUR 713.79 gross
Temporarily out of stocktemporarily out of stock
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GNE100-XL-KRR-B—
EUR 580.32
Cheaper in larger quantities
| from 5 pcs | EUR 562.91 | −3% |
| from 10 pcs | EUR 557.10 | −4% |
| from 25 pcs | EUR 545.50 | −6% |
| from 50 pcs | EUR 533.89 | −8% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)GNE100-XL-KRR-B#N1>1
EAN4064327885890
Wymiary⌀100 × 215 × 86 mm
Masa11.41 kg
