Description
Flanged housing unit FLCTE..-XL-FA107-OSE
INA
FLCTE40-XL-FA107-OSE
Flanged housing unit
⌀40 × 80 × 30.2 mm
od EUR 53.38z VAT
netto EUR 43.40 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
FLCTE40-XL-FA107-OSE—
EUR 53.38
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)FLCTE40-XL-FA107-OSE#N10
EAN4012802820669
Wymiary⌀40 × 80 × 30.2 mm
Opakowanie10 szt.
Minimum order10 szt.
Masa1.15 kg
Ten towar sprzedawany jest w opakowaniach po 10 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
48 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- FLCTE40-XL-FA107-OSE#N10
- EAN
- 4012802820669

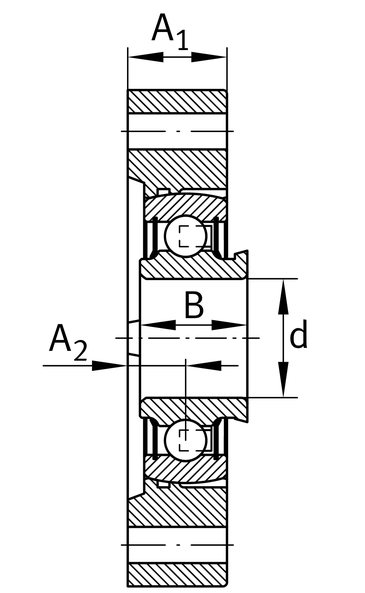

Dimensions
- Bore d
- 40 mm
- Outside diameter D
- 80 mm
- Width B
- 30.2 mm
- Mass
- 1.15 kg
Load ratings and operation
- Dynamic load rating C
- 32500 N
- Static load rating C₀
- 19800 N
Full manufacturer specification38 parameters · expand
- Basic dynamic load rating
- 32500.0 N
- Basic static load rating
- 19800.0 N
- Bearing designation
- RAE40-XL-NPP-B
- Bearing in kit
- RAE40-XL-NPP-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Distance between mounting bolt centerlines (length)
- 119.0 mm
- Distance fixing bore
- 119.0 mm
- Distance raceway
- 13.5 mm
- Fixing bore
- 14.0 mm
- Flange width
- 100.0 mm
- Height flange
- 150.0 mm
- Housing
- GEHLCTE08-GG
- Housing height
- 150.0 mm
- Housing in kit
- FLCTE40-XL-FA107-OSE
- Housing length
- 100.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 31.7 mm
- Inner diameter bearing
- 40.0 mm
- Location on shaft
- Acc
- Marketing category
- XL
- Material
- GG
- Number of housings
- 1.0
- Number of screwing holes
- 2.0
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 80.0 mm
- PFAS
- nein
- Sealing type
- LIP
- Thickness of flange
- 26.0 mm
- Total height unit
- 31.7 mm
- Without locking device
- OSE
