Technical data
33 parametersIdentification
- Manufacturer
- FAG
- Type
- Toroidal roller bearing
- Part number (SKU)
- C3036-XL-K-M-C4#N1
- EAN
- 4064331069088
- Cage
- M

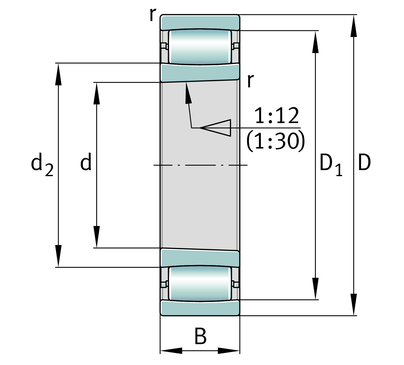

Dimensions
- Bore d
- 180 mm
- Outside diameter D
- 280 mm
- Width B
- 74 mm
- Mass
- 16.50 kg
Load ratings and operation
- Dynamic load rating C
- 900000 N
- Static load rating C₀
- 1360000 N
- Limiting speed
- 2650 1/min
Full manufacturer specification21 parameters · expand

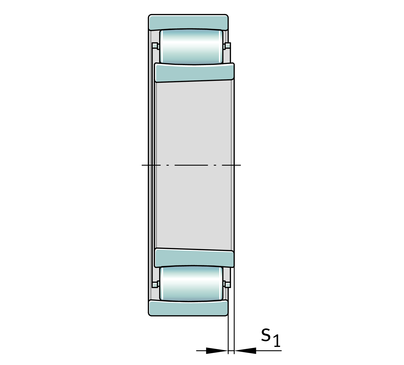

- Axial displacement
- 15.1 mm
- Bore type
- K
- Cage
- M
- Category
- XL
- Fatigue load limit, radial
- 150000.0 N
- Max. operating temperature
- 200.0 °C

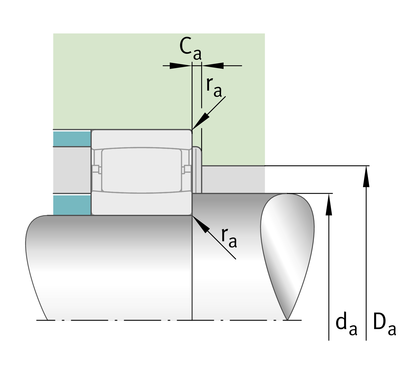

- Maximum diameter shaft shoulder
- 223.0 mm
- Maximum fillet radius
- 2.0 mm
- Maximum housing shoulder diameter
- 269.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 2.1 mm
- Minimum depth of free space Ca
- 1.5 mm
- Minimum housing shoulder diameter
- 241.0 mm
- Minimum shaft shoulder diameter
- 191.0 mm
- Operating clearance factor kδ
- 1.135
- Outer ring shoulder diameter
- 236.1 mm
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 1420.0 1/min
- RoHS
- RoHS compliant with declarable substances
- Shoulder diameter of IR
- 208.9 mm
- Tilting factor kφ
- 9.696
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Toroidal Roller Bearing
- eCl@ss class
- 23-05-09-13
- UNSPSC
- 31171502
Description
Toroidal roller bearing C30..-XL-K-M
FAG
C3036-XL-K-M-C4
Common designation: C3036 K M C4
Toroidal roller bearing
⌀180 × 280 × 74 mm
od EUR 827.91net
+ VAT 23% = EUR 1,018.33 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
C3036-XL-K-M-C4—
EUR 827.91
Cheaper in larger quantities
| from 5 pcs | EUR 803.08 | −3% |
| from 10 pcs | EUR 794.80 | −4% |
| from 25 pcs | EUR 778.24 | −6% |
| from 50 pcs | EUR 761.68 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)C3036-XL-K-M-C4#N1
EAN4064331069088
Wymiary⌀180 × 280 × 74 mm
Masa16.50 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
