Description

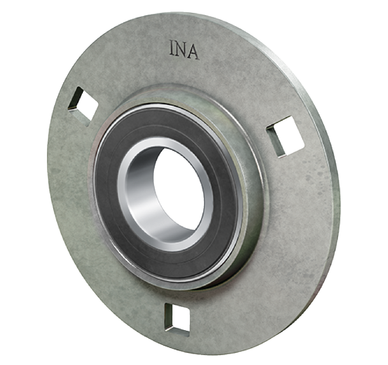

Flanged housing unit BA..-XL
INA
BA25-XL
Flanged housing unit
od EUR 109.06z VAT
netto EUR 88.67 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
BA25-XL—
EUR 109.06
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)BA25-XL#N1
EAN4012802787054
Masa300 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- BA25-XL#N1
- EAN
- 4012802787054
Dimensions
- Bore d
- 25 mm
- Mass
- 300 g
Full manufacturer specification19 parameters · expand
- Bearing designation
- 205-XL-NPP-B
- Bearing sealed
- Yes
- Fixing square
- 8.7 mm
- Flange width
- 95.0 mm
- Height flange
- 95.0 mm
- Height housing
- 8.7 mm
- Housing
- FLAN52-MSB-FA125
- Housing in kit
- BA25-XL
- Marketing category
- XL
- Material
- Steel sheet
- Number of housings
- 2.0
- Number of screwing holes
- 3.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- Pitch circle diameter (holes)
- 76.2 mm
- REACH
- REACH_YES_7439-92-1!
- Shoulder diameter housing
- 55.0 mm
- Thickness of flange
- 2.0 mm
