Technical data
22 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic pump, manual
- Part number (SKU)
- AHP-702-SET#N1
- EAN
- 4064328034235
Dimensions
- Mass
- 11.10 kg
Full manufacturer specification17 parameters · expand
- Cylinder compatibility
- single-acting
- Dimensions steel case (mm)
- 722 x 155 x 166
- Height pump
- 130.0 mm
- Hose connection pump body
- 3/8" NPT
- Length pump
- 542.0 mm
- Maximum operating pressure
- 700.0 bar
- Oil flow/stroke, 1st stage
- 12.9 cm³
- Oil flow/stroke, 2nd stage
- 1.65 cm³
- Operating pressure, 1st stage
- 20.0 bar
- PFAS
- no
- Series
- AHP
- Use
- preferably in combination with hydraulic cylinders and hydraulic pullers HXP
- Useable oil quantity
- 0.75 l
- Version
- HC
- Volume of oil container
- 1.0 l
- Weight pump
- 4.1 kg
- Width pump
- 110.0 mm
Classification
- Manufacturer category
- Digital and Service Solutions › Hydraulic Tools for Mounting and Dismounting Bearings and Components › Hydraulic Pumps › Manual Pumps
- eCl@ss class
- 51-41-90-90
- UNSPSC
- 40151533
Description

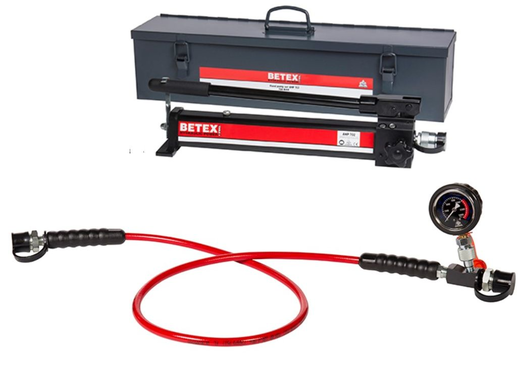

BETEX Aluminum hand pump, two-stage, in set with pressure gauge, T-piece, hose, couplings and steel box
Betex
AHP-702-SET
Hydraulic pump, manual
od EUR 1,077.44net
+ VAT 23% = EUR 1,325.25 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
AHP-702-SET—
EUR 1,077.44
Cheaper in larger quantities
| from 5 pcs | EUR 1,045.11 | −3% |
| from 10 pcs | EUR 1,034.34 | −4% |
| from 25 pcs | EUR 1,012.79 | −6% |
| from 50 pcs | EUR 991.24 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)AHP-702-SET#N1
EAN4064328034235
Masa11.10 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
