Axial cylindrical roller bearing 874..-TV, multi-row

INA

87410-TV

Axial cylindrical roller bearing

⌀50 × 110 × 27 mm

od EUR 331.24z VAT

netto EUR 269.30 · cena detaliczna

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

87410-TV—
EUR 331.24
To orderapprox. 10 days

Brought in to order — approx. 10 working days

Symbol (SKU)87410-TV#N1
EAN4012802031164
Wymiary⌀50 × 110 × 27 mm
Masa1.27 kg

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

Open a business account →

Technical data

30 parameters
Datasheet (PDF)Full manufacturer specification — drawing, dimensions, tolerances.

Identification

Manufacturer
INA
Type
Axial cylindrical roller bearing
Part number (SKU)
87410-TV#N1
EAN
4012802031164
Cage
TV

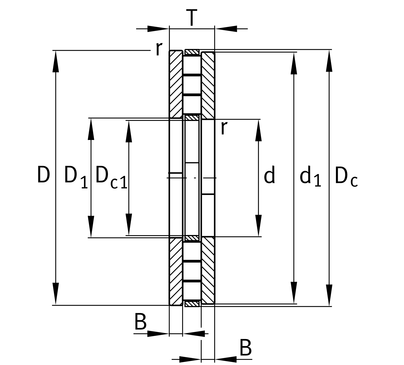

Dimensions

Bore d
50 mm
Outside diameter D
110 mm
Width B
27 mm
Mass
1.27 kg

Load ratings and operation

Dynamic load rating C
200000 N
Static load rating C₀
740000 N
Limiting speed
3600 1/min
Full manufacturer specification18 parameters · expand
Axial roller and cage assembly
K87410-TV
Basic dynamic load rating, axial
200000.0 N
Basic static load rating, axial
740000.0 N
Bore diameter housing washer
52.0 mm
Cage
TV
Housing Washer
GS87410
Maximum diameter of housing shoulder
54.0 mm
Maximum recess radius
1.5 mm
Minimum chamfer dimension
1.5 mm
Minimum diameter shaft shoulder
107.0 mm
Operating temperature max.
120.0 °C
Operating temperature min.
-30.0 °C
PFAS
nein
REACH
REACH conform
Reference speed
1200.0 1/min
Rip diameter shaft washer
110.0 mm
RoHS
RoHS compliant
Shaft washer
WS87410
