Technical data
38 parametersIdentification
- Manufacturer
- FAG
- Type
- Axial deep groove ball bearing
- Part number (SKU)
- 54208#N1
- EAN
- 4012801163149
- Cage
- JP
- Tolerance class
- PN
Dimensions
- Mass
- 513 g
Load ratings and operation
- Dynamic load rating C
- 44000 N
- Static load rating C₀
- 97000 N
- Limiting speed
- 5500 1/min
Full manufacturer specification28 parameters · expand
- Basic dynamic load rating, axial
- 44000.0 N
- Basic static load rating, axial
- 97000.0 N

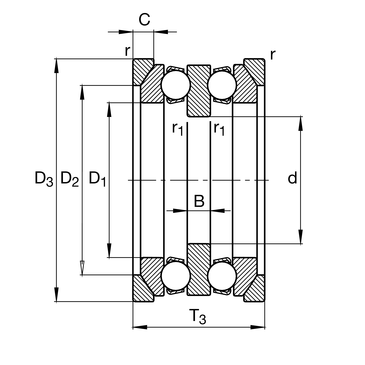

- Bore diameter seat washer
- 55.0 mm
- Cage
- JP
- Dimensional / heat stabilization
- S0

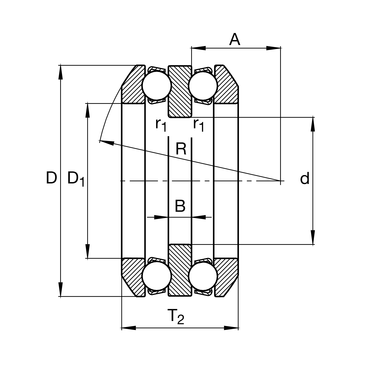

- Distance of the center point
- 25.0 mm
- Fatigue load limit, axial
- 4400.0 N
- Height
- 38.6 mm
- Height seat washer
- 7.0 mm
- Height shaft washer
- 9.0 mm
- Height with seat washer
- 44.0 mm
- Inner diameter housing washer
- 42.0 mm
- Inner diameter shaft washer
- 30.0 mm
- Max. operating temperature
- 150.0 °C

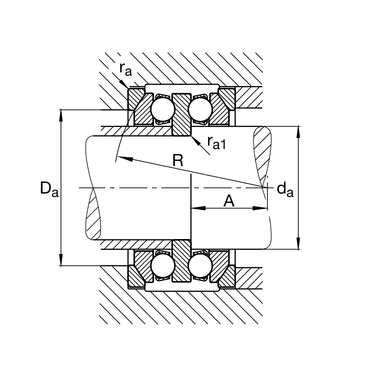

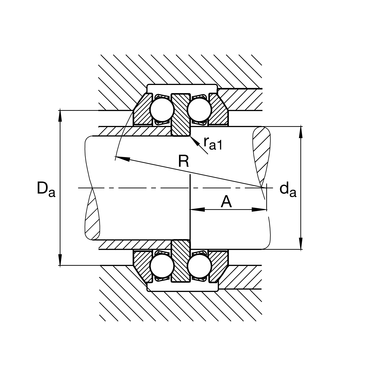

- Maximum diameter shaft shoulder
- 40.0 mm
- Maximum filled radius
- 0.6 mm
- Maximum housing shoulder diameter
- 55.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 0.6 mm
- Minimum load factor
- 0.05
- Outer diameter housing washer
- 68.0 mm
- Outside diameter seat washer
- 72.0 mm
- PFAS
- no
- Radius spherical housing washer
- 56.0 mm
- REACH
- REACH compliant
- Reference speed
- 6900.0 1/min
- RoHS
- RoHS compliant
- Seat washer
- U208
Classification
- Manufacturer category
- Rolling and Plain Bearings › Ball Bearings › Axial Ball Bearings › Axial Deep Groove Ball Bearings
- eCl@ss class
- 23-05-10-01
- UNSPSC
- 31171507
Description

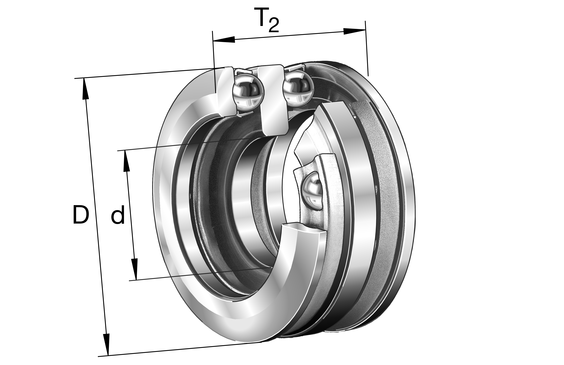

Axial deep groove ball bearing 542, double direction, with spherical housing washer, steel sheet metal cage
The same bearing from other manufacturers (3 designations)
Same size and design — suffix notation differs between brands.
FAG
54208
original — this page
equivalent designation
KOYO
54208
NSK
54208
SKF
54208
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
