Description

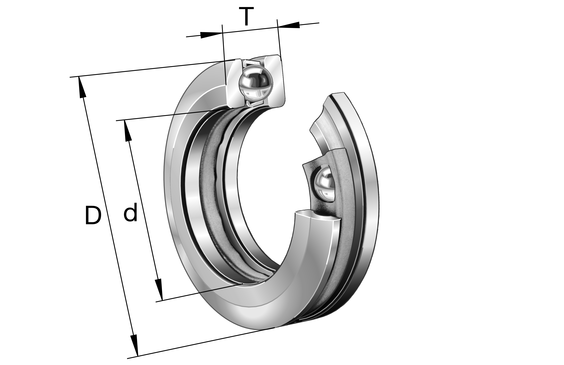

Axial deep groove ball bearing 532, single direction, with spherical housing washer, steel sheet metal cage
FAG
53205
Axial deep groove ball bearing
od EUR 17.92z VAT
netto EUR 14.57 · cena detaliczna
53205—
EUR 17.92
Cheaper in larger quantities
| from 250 pcs | EUR 13.84 | −5% |
Last few (19)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)53205#N1
EAN4012801162906
Masa119 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
38 parametersIdentification
- Manufacturer
- FAG
- Type
- Axial deep groove ball bearing
- Part number (SKU)
- 53205#N1
- EAN
- 4012801162906
- Cage
- JP
- Tolerance class
- PN
Dimensions
- Mass
- 119 g
Load ratings and operation
- Dynamic load rating C
- 26500 N
- Static load rating C₀
- 50000 N
- Limiting speed
- 7500 1/min
Full manufacturer specification28 parameters · expand
- Basic dynamic load rating, axial
- 26500.0 N
- Basic static load rating, axial
- 50000.0 N
- Bore diameter seat washer
- 36.0 mm
- Cage
- JP
- Dimensional / heat stabilization
- S0
- Distance of the center point
- 19.0 mm
- Fatigue load limit, axial
- 2280.0 N
- Height
- 16.7 mm
- Height seat washer
- 5.5 mm
- Height with seat washer
- 19.0 mm
- Inner diameter housing washer
- 27.0 mm
- Inner diameter shaft washer
- 25.0 mm
- Maximum diameter of housing shoulder
- 36.0 mm
- Maximum filled radius
- 0.6 mm
- Minimum chamfer dimension
- 0.6 mm
- Minimum diameter shaft shoulder
- 38.0 mm
- Minimum load factor
- 0.013
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- Outer diameter housing washer
- 47.0 mm
- Outer diameter shaft washer
- 47.0 mm
- Outside diameter seat washer
- 50.0 mm
- PFAS
- nein
- Radius spherical housing washer
- 40.0 mm
- REACH
- REACH conform
- Reference speed
- 9800.0 1/min
- RoHS
- RoHS compliant
- Seat washer
- U205
