Description

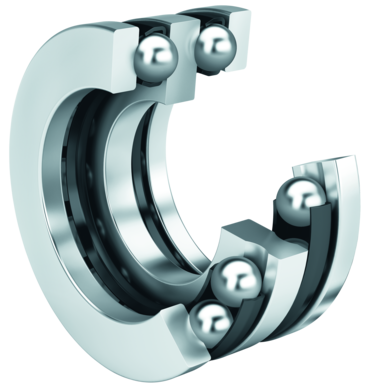

Axial deep groove ball bearing 522, double direction, steel sheet metal cage
FAG
52210
Axial deep groove ball bearing
od EUR 64.18z VAT
netto EUR 52.18 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
52210—
EUR 64.18
Cheaper in larger quantities
| from 100 pcs | EUR 49.57 | −5% |
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)52210#N1
EAN4012801016698
Masa684 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
31 parametersIdentification
- Manufacturer
- FAG
- Type
- Axial deep groove ball bearing
- Part number (SKU)
- 52210#N1
- EAN
- 4012801016698
- Cage
- JP
- Tolerance class
- PN
Dimensions
- Mass
- 684 g
Load ratings and operation
- Dynamic load rating C
- 50000 N
- Static load rating C₀
- 106000 N
- Limiting speed
- 4950 1/min
Full manufacturer specification21 parameters · expand
- Basic dynamic load rating, axial
- 50000.0 N
- Basic static load rating, axial
- 106000.0 N
- Cage
- JP
- Dimensional / heat stabilization
- S0
- Fatigue load limit, axial
- 4850.0 N
- Height
- 39.0 mm
- Height shaft washer
- 9.0 mm
- Inner diameter housing washer
- 52.0 mm
- Inner diameter shaft washer
- 40.0 mm
- Maximum diameter of housing shoulder
- 61.0 mm
- Maximum diameter shaft shoulder
- 50.0 mm
- Maximum filled radius
- 0.6 mm
- Minimum chamfer dimension
- 0.6 mm
- Minimum load factor
- 0.069
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- Outer diameter housing washer
- 78.0 mm
- PFAS
- nein
- REACH
- REACH conform
- Reference speed
- 5800.0 1/min
- RoHS
- RoHS compliant
