Technical data
39 parametersIdentification
- Manufacturer
- FAG
- Type
- Axial angular contact ball bearing
- Part number (SKU)
- 234407-M-SP#N1
- EAN
- 4012801193481
- Cage
- M
- Tolerance class
- SP
Dimensions

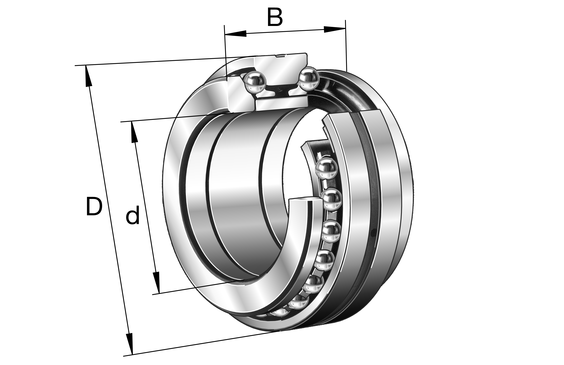

- Bore d
- 35 mm
- Outside diameter D
- 62 mm
- Width B
- 34 mm
- Mass
- 381 g
Load ratings and operation
- Dynamic load rating C
- 19100 N
- Static load rating C₀
- 46500 N
Full manufacturer specification27 parameters · expand
- Axial rigidity
- 316.0 N/µm
- Basic dynamic load rating, axial
- 19100.0 N
- Basic static load rating, axial
- 46500.0 N
- Cage
- M
- Contact angle
- 60.0 °
- Diameter shaft shoulder clearance
- h12

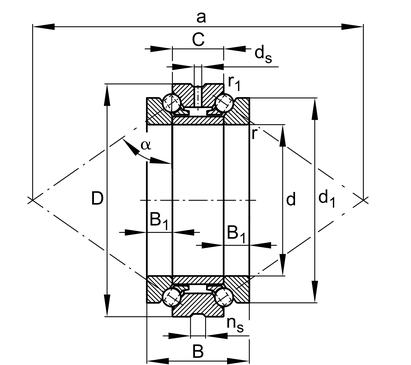

- Distance between pressure cone apexes
- 103.0 mm
- Fatigue load limit, axial
- 4300.0 N
- Height wave disc
- 8.5 mm
- Lift-off force
- 382.0 N
- Limiting speed for grease lubrication
- 9500.0 1/min
- Limiting speed for oil lubrication
- 1400.0 1/min
- Lubricating groove width
- 4.8 mm
- Lubrication hole diameter
- 3.2 mm
- Max. operating temperature
- 150.0 °C
- Maximum recess radius
- 1.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 1.0 mm
- Outer ring shoulder diameter
- 57.0 mm
- Outer ring width
- 17.0 mm
- PFAS
- no
- Preload force
- 134.0 N
- REACH
- REACH compliant with declarable lead proportion
- Rip diameter shaft washer
- 53.0 mm
- RoHS
- RoHS compliant with declarable substances

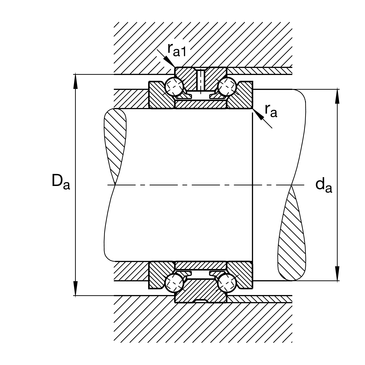

- Shaft shoulder diameter
- 46.5 mm
- Shoulder diameter outer ring clearance
- H12
Classification
- Manufacturer category
- Rolling and Plain Bearings › Super Precision Bearings › Axial-super Precision Bearings › Axial-angular Contact Ball Bearings for Main Spindles
- eCl@ss class
- 23-05-10-02
- UNSPSC
- 31171507
Description
Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
The same bearing from other manufacturers (2 designations)
Same size and design — suffix notation differs between brands.
FAG
234407-M-SP
original — this page
equivalent designation
SKF
234407
SKF
234407BM1/SP
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
234407-M-SP
Axial angular contact ball bearing
⌀35 × 62 × 34 mm
od EUR 495.66net
+ VAT 23% = EUR 609.66 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 480.79 | −3% |
| from 10 pcs | EUR 475.83 | −4% |
| from 25 pcs | EUR 465.92 | −6% |
| from 50 pcs | EUR 456.00 | −8% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
