Technical data
41 parametersIdentification
- Manufacturer
- FAG
- Type
- Spherical Roller Bearing
- Part number (SKU)
- 22264-BEA-XL-K-MB1#N1
- EAN
- 4054371755669
- Cage
- MB1

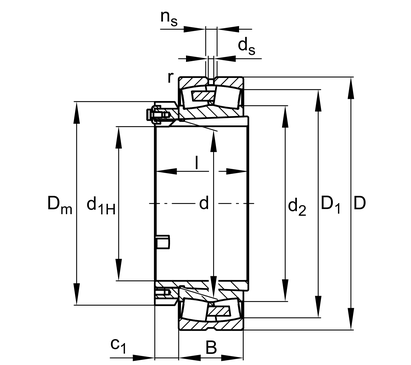

Dimensions
- Bore d
- 320 mm
- Outside diameter D
- 580 mm
- Width B
- 150 mm
- Mass
- 166.50 kg
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 3550000 N
- Static load rating C₀
- 4700000 N
- Limiting speed
- 1410 1/min
Full manufacturer specification28 parameters · expand
- Adapter sleeve
- H3164-HG
- Bore type
- K
- Cage
- MB1
- Category
- XL
- Design
- BEA
- Dynamic axial load factor
- 4.04
- Fatigue load limit, radial
- 405000.0 N
- Limiting value of Fa/Fr for factors X and Y
- 0.25
- Lubricating groove width
- 23.5 mm
- Lubrication hole diameter
- 12.5 mm
- Max. operating temperature
- 200.0 °C
- Maximum housing shoulder diameter
- 560.0 mm
- Maximum recess radius
- 4.0 mm
- Maximum shaft shoulder diameter
- 378.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 5.0 mm
- Minimum shaft shoulder diameter
- 340.0 mm
- Minimum sleeve cavity diameter
- 338.0 mm
- Minimum sleeve cavity width
- 39.0 mm
- Outer ring bore diameter
- 505.1 mm
- PFAS
- no
- Radial internal clearance
- CN (group N)
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 850.0 1/min
- Relubrication feature
- Standard
- RoHS
- RoHS compliant with declarable substances
- Static axial load factor
- 2.65
- Withdrawal sleeve
- AH2264G-H
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Spherical Roller Bearings
- eCl@ss class
- 23-05-09-11
- UNSPSC
- 31171505
Description
Spherical roller bearing 222..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
For mounting this bearing
The sleeve, nut and lock washer needed to mount the bearing, followed by matching housings. All from our catalogue.
22264-BEA-XL-K-MB1
Common designation: 22264 BEA K MB1
Spherical Roller Bearing
⌀320 × 580 × 150 mm
od EUR 10,305.69net
+ VAT 23% = EUR 12,676.00 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 9,910.46 | −4% |
| from 10 pcs | EUR 9,807.23 | −5% |
| from 25 pcs | EUR 9,600.76 | −7% |
| from 50 pcs | EUR 9,394.29 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
