Description

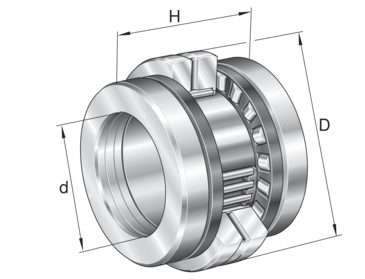

Needle roller/axial cylindrical roller bearings ZARN, double direction
INA
ZARN1545-TV-A
Needle roller/axial cylindrical roller bearing
⌀15 × 45 mm
od EUR 449.10z VAT
netto EUR 365.12 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZARN1545-TV-A—
EUR 449.10
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ZARN1545-TV-A#N1
EAN4012802439892
Wymiary⌀15 × 45 mm
Masa276.9 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller/axial cylindrical roller bearing
- Part number (SKU)
- ZARN1545-TV-A#N1
- EAN
- 4012802439892
- Cage
- TV

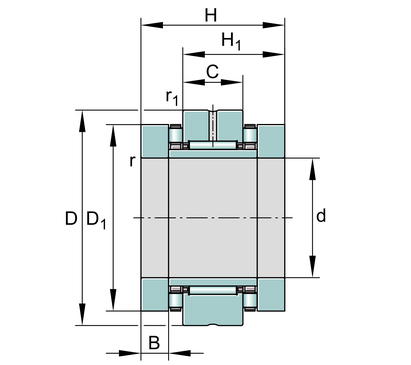

Dimensions
- Bore d
- 15 mm
- Outside diameter D
- 45 mm
- Mass
- 276.9 g
Load ratings and operation
- Dynamic load rating C
- 13000 N
- Static load rating C₀
- 17500 N
Full manufacturer specification29 parameters · expand
- Axial runout
- 1.0 µm
- Basic dynamic load rating, axial
- 24900.0 N
- Basic static load rating, axial
- 53000.0 N
- Bearing friction torque
- 0.35 Nm
- Cage
- TV
- Fatigue load limit, axial
- 7500.0 N
- Fatigue load limit, radial
- 2650.0 N
- Height outer ring over wave washer
- 28.0 mm
- Hight
- 40.0 mm
- Limiting speed for grease lubrication
- 2200.0 1/min
- Limiting speed for oil lubrication
- 8500.0 1/min
- Mass moment of inertia
- 0.24 kg*cm²
- Maximum diameter of housing shoulder
- 36.0 mm
- Minimum chamfer dimension
- 0.3 mm
- Minimum diameter shaft shoulder
- 28.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Preload force axial
- 6506.0 N
- REACH
- REACH conform
- Recommended INA precision locknut for axial locking (not included)
- AM15
- Recommended INA precision locknut for radial locking (not included)
- ZMA15/33
- Rigidity axial
- 1400.0 N/µm
- Rip diameter shaft washer
- 35.0 mm
- RoHS
- RoHS compliant
- Tightening torque nut
- 10.0 Nm
- Tilting stiffness
- 110.0 Nm/mrad
- Width, inner ring
- 7.5 mm
- Width, outer ring
- 16.0 mm
