Description

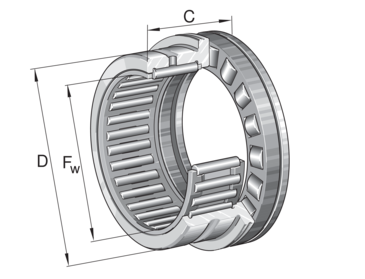

Needle roller/axial cylindrical roller bearings ZARF..-L, double direction, for screw mounting, long shaft locating washer
INA
ZARF2575-L-TV-A
Needle roller/axial cylindrical roller bearing
⌀25 × 75 mm
od EUR 709.30z VAT
netto EUR 576.67 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZARF2575-L-TV-A—
EUR 709.30
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ZARF2575-L-TV-A#N1
EAN4012802440034
Wymiary⌀25 × 75 mm
Masa763 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
54 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller/axial cylindrical roller bearing
- Part number (SKU)
- ZARF2575-L-TV-A#N1
- EAN
- 4012802440034
- Cage
- TV

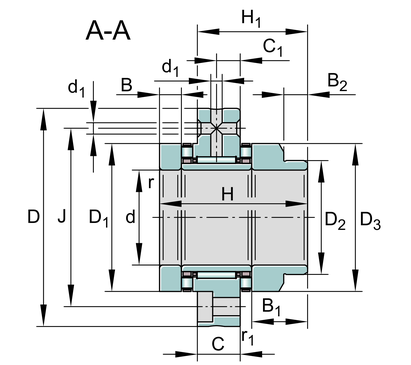

Dimensions
- Bore d
- 25 mm
- Outside diameter D
- 75 mm
- Mass
- 763 g
Load ratings and operation
- Dynamic load rating C
- 22600 N
- Static load rating C₀
- 36000 N
Full manufacturer specification44 parameters · expand
- Axial runout
- 1.0 µm
- Basic dynamic load rating, axial
- 35500.0 N
- Basic static load rating, axial
- 86000.0 N
- Bearing friction torque
- 0.55 Nm
- Cage
- TV
- Diameter lubrication hole
- 3.2 mm
- Distance to lubrication hole
- 10.0 mm
- Division (screwing holes)
- 45.0 °
- Fatigue load limit, axial
- 7300.0 N
- Fatigue load limit, radial
- 5200.0 N
- Heeldiameter wave washer long
- 36.0 mm
- Height outer ring over wave washer
- 48.0 mm
- Hight
- 65.0 mm
- Limiting speed for grease lubrication
- 1900.0 1/min
- Limiting speed for oil lubrication
- 6000.0 1/min
- Locknut 2
- AM25
- Mass moment of inertia
- 1.15 kg*cm²

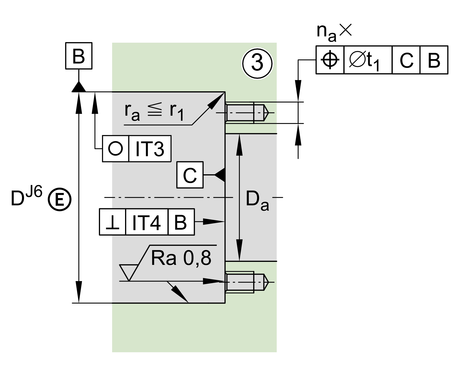

- Maximum diameter of housing shoulder
- 48.0 mm
- Minimum chamfer dimension
- 0.3 mm
- Minimum diameter shaft shoulder
- 34.0 mm

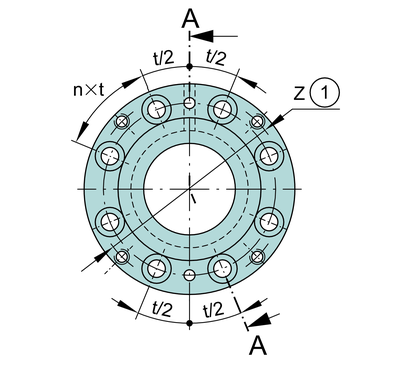

- Number of screwing holes
- 8.0
- Number of screws
- 8.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter wave washer long
- 45.0 mm
- PFAS
- nein

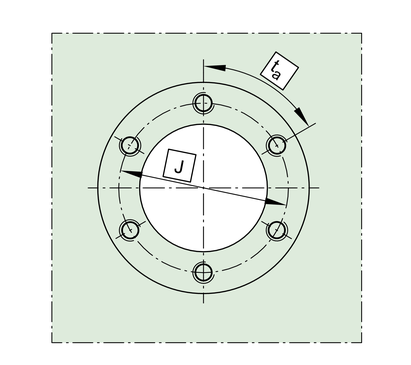

- Pitch circle diameter (holes)
- 58.0 mm
- Position bore in the housing
- 0.1 mm
- Preload force axial
- 9745.0 N
- REACH
- REACH conform
- Recommended INA precision locknut for radial locking (not included)
- ZMA25/45
- Rigidity axial
- 1900.0 N/µm
- Rip diameter shaft washer
- 47.0 mm
- RoHS
- RoHS compliant
- Screw size
- M6
- Sealing ring
- 36X47X7
- Split
- 45.0 °
- Tightening torque nut
- 25.0 Nm
- Tilting stiffness
- 350.0 Nm/mrad
- Type of wave washer
- L
- Width heel wave washer long
- 12.0 mm
- Width wave washer long
- 25.0 mm
- Width, outer ring
- 18.0 mm
- Width, wave washer
- 10.0 mm
