Description
Axial/radial bearings, double direction, screw mounting, for higher speeds, with integrated absolute angular measuring system
INA
YRTSMA260-03-1088
Axial/radial roller bearing
⌀260 × 385 mm
od EUR 13,165.23z VAT
netto EUR 10,703.44 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
YRTSMA260-03-1088—
EUR 13,165.23
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)YRTSMA260-03-1088#N1
EAN4054369208917
Wymiary⌀260 × 385 mm
Masa18.70 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
51 parametersIdentification
- Manufacturer
- INA
- Type
- Axial/radial roller bearing
- Part number (SKU)
- YRTSMA260-03-1088#N1
- EAN
- 4054369208917

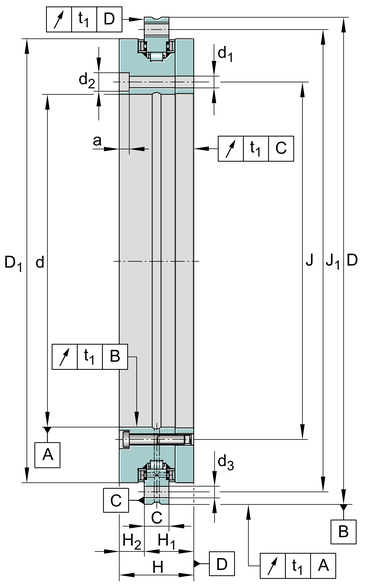

Dimensions
- Bore d
- 260 mm
- Outside diameter D
- 385 mm
- Mass
- 18.70 kg
Load ratings and operation
- Dynamic load rating C
- 110000 N
- Static load rating C₀
- 305000 N
- Limiting speed
- 910 1/min
Full manufacturer specification41 parameters · expand

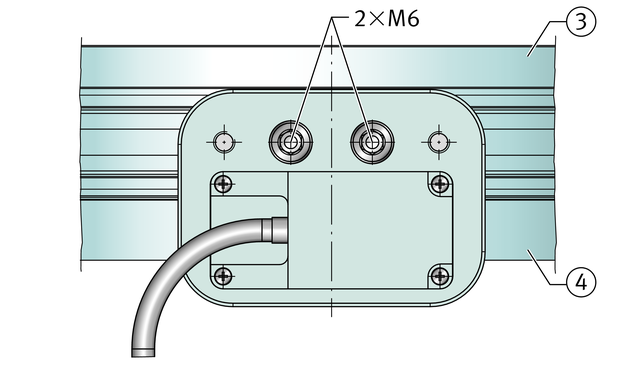

- Angular measuring system integrated
- MA
- Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction.
- 6.0 µm
- Axial rigidity of bearing position
- 9700.0 N/µm
- Axial rigidity of rolling element set
- 16800.0 N/µm
- Basic dynamic load rating, axial
- 173000.0 N
- Basic static load rating, axial
- 1050000.0 N
- Bore diameter lower tolerance
- -0.018 mm
- Bore diameter upper tolerance
- 0.0 mm
- Counterbore depth of fixing holes
- 8.2 mm
- Counterbore diameter of fixing holes
- 15.0 mm
- Fixing holes diameter inner ring
- 9.3 mm
- Fixing holes diameter outer ring
- 9.3 mm
- Height
- 57.5 mm
- Height contact face outer ring
- 21.0 mm
- Height contact face outerring H1 lower tolerance
- -0.07 mm
- Height contact face outerring H1 upper tolerance
- 0.05 mm
- Mass moment of inertia for rotating inner ring
- 2074.0 kg*cm²
- Mass moment of inertia for rotating outer ring
- 1422.0 kg*cm²
- Maximum diameter inner ring
- 347.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.02 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein

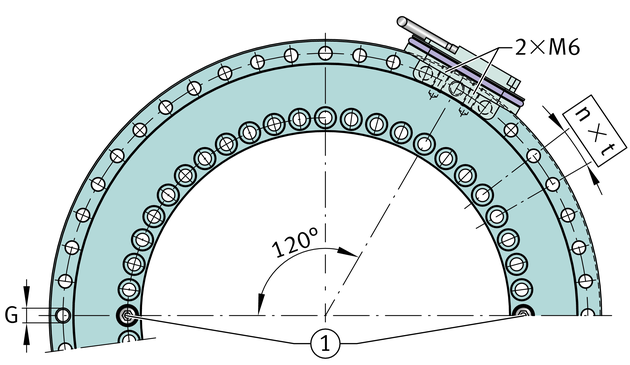

- Pitch circle diameter fixing holes in inner ring
- 280.0 mm
- Pitch circle diameter fixing holes in outer ring
- 365.0 mm
- Pitch quantity
- 36.0
- Pitch separation angle
- 10.0 °
- Quantity of fixing holes inner ring
- 34.0
- Quantity of fixing holes outer ring
- 33.0
- Quantity of retaining screws
- 2.0
- Quantity of threaded extraction hole
- 3.0
- Radial rigidity of bearing position
- 6400.0 N/µm
- Radial rigidity of rolling element set
- 5800.0 N/µm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Screw tightening torque
- 34.0 Nm
- Threaded extraction hole
- M12
- Tilting rigidity of bearing position
- 120600.0 Nm/mrad
- Tilting rigidity of rolling element set
- 201000.0 Nm/mrad
- Width of outer ring
- 18.0 mm
