Description

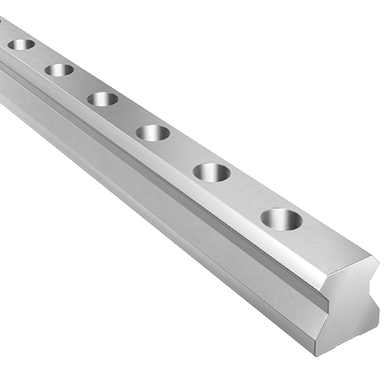

Guideways for linear recirculating roller bearing, TSX..-E
INA
TSX35X6000-E-0001-EWL-G3
Profile rail
od EUR 1,714.61z VAT
netto EUR 1,393.99 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
TSX35X6000-E-0001-EWL-G3—
EUR 1,714.61
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)TSX35X6000-E-0001-EWL-G3#N4N
EAN4054371372019
Opakowanie4 szt.
Minimum order4 szt.
Masa34.90 kg
Ten towar sprzedawany jest w opakowaniach po 4 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Profile rail
- Part number (SKU)
- TSX35X6000-E-0001-EWL-G3#N4N
- EAN
- 4054371372019
Dimensions
- Bore d
- 9 mm
- Width B
- 34 mm
- Mass
- 34.90 kg
Full manufacturer specification19 parameters · expand
- ~Guideway length
- ~6000
- Accuracy class
- G3
- Distance
- 20.0 mm
- Fixing screws (DIN ISO 4762-12.9)
- M8
- Guideway length
- 6000.0 mm
- Height
- 30.0 mm
- Increment
- 40.0 mm
- Length
- 17.5 mm
- Lower tolerance
- -0.035 mm
- Max length single piece guideway
- 6000.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Size code
- 35
- Tightening torque
- 41.0 Nm
- Upper tolerance
- -0.005 mm
- Usable carriage(s)
- RWU35-E-...; RWU35-F-...
- Usable linear systems
- RUE35-E-...; RUE35-F-...
- Version
- E
