Description

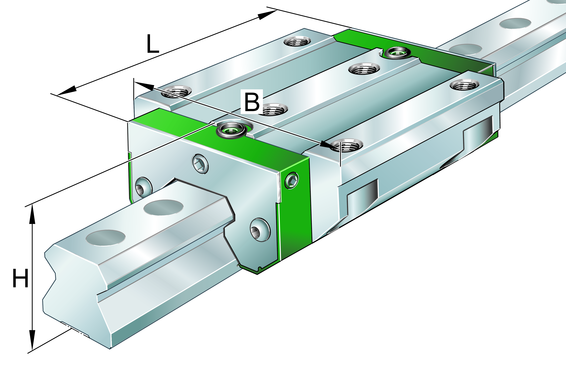

Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
INA
RWU35-F-120/930/120-V1-G3
Recirculating roller bearing carriage
od EUR 241.06z VAT
netto EUR 195.98 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RWU35-F-120/930/120-V1-G3—
EUR 241.06
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RWU35-F-120/930/120-V1-G3#N1
EAN4064327070906
Masa1.70 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
33 parametersIdentification
- Manufacturer
- INA
- Type
- Recirculating roller bearing carriage
- Part number (SKU)
- RWU35-F-120/930/120-V1-G3#N1
- EAN
- 4064327070906
Dimensions
- Bore d
- 8.6 mm
- Mass
- 1.70 kg
Full manufacturer specification27 parameters · expand
- Accuracy class
- G3
- Carriage design
- Standard
- Distance from locating edge on carriage to locating edge on guideway
- 33.0 mm
- Distance from locating edge to hole
- 9.0 mm
- Dynamic load rating
- 140000.0 N
- Fixing screws below (DIN 7984-8.8)
- M8
- Fixing screws below (DIN ISO 4762-12.9)
- M8
- Free space, system dimension
- 6.5 mm
- Height system
- 48.0 mm
- Lubrication connector
- M6
- Max. diameter of lubrication hole in adjacent construction
- 6.0 mm
- Maximum permissible screw depth for lubrication connectors
- 6.0 mm
- Maximum tightening torque
- 41.0 Nm
- O-Ring DIN 3771
- 10x1,5
- Overall length carriage
- 122.9 mm
- PFAS
- nein
- Position lubrication connector
- 14.3 mm
- Preload class
- V1
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size Code
- 35
- Static moment rating about X axis
- 1200.0 Nm
- Static moment rating about Y axis
- 2150.0 Nm
- Static moment rating about Z axis
- 1950.0 Nm
- Thread depth
- 12.0 mm
- Version
- F
- Width carriage
- 100.0 mm
- Width rail
- 34.0 mm
