Description

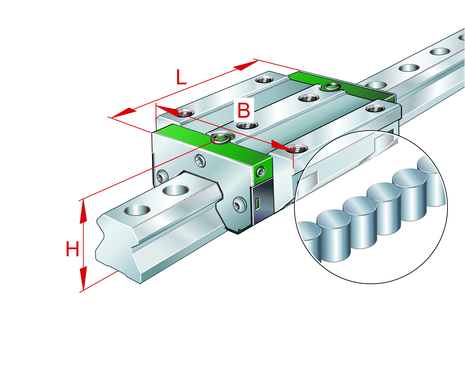

Long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
INA
RWU25-E-L-V1-G2
Recirculating roller bearing carriage
od EUR 218.12z VAT
netto EUR 177.33 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RWU25-E-L-V1-G2—
EUR 218.12
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RWU25-E-L-V1-G2#N1
EAN4054364511500
Masa850 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
32 parametersIdentification
- Manufacturer
- INA
- Type
- Recirculating roller bearing carriage
- Part number (SKU)
- RWU25-E-L-V1-G2#N1
- EAN
- 4054364511500
Dimensions
- Bore d
- 6.7 mm
- Mass
- 850 g
Full manufacturer specification26 parameters · expand
- Carriage design
- L
- Distance from locating edge on carriage to locating edge on guideway
- 23.5 mm
- Distance from locating edge to hole
- 6.5 mm
- Dynamic load rating
- 82000.0 N
- Fixing screws below (DIN 7984-8.8)
- M6
- Fixing screws below (DIN ISO 4762-12.9)
- M6
- Free space, system dimension
- 6.5 mm

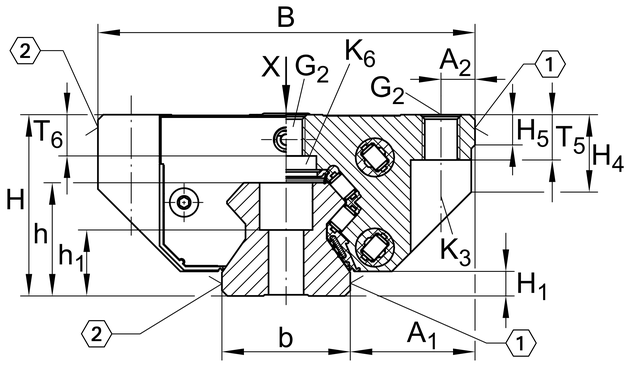

- Height system
- 36.0 mm

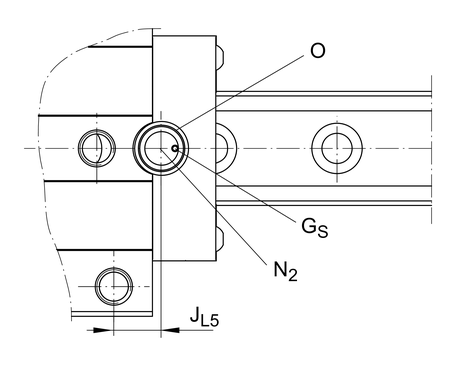

- Lubrication connector
- M6
- Material name
- RWU

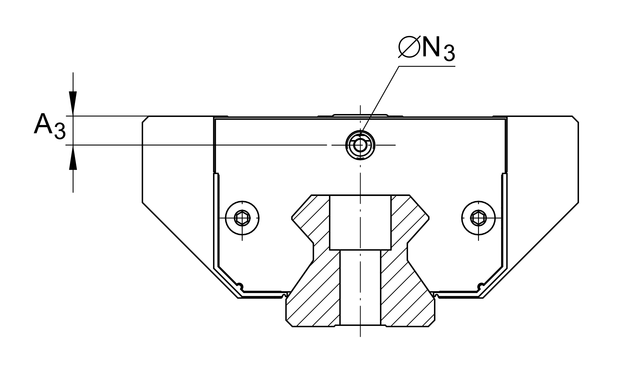

- Max. diameter of lubrication hole in adjacent construction
- 3.0 mm
- Maximum permissible screw depth for lubrication connectors
- 6.0 mm
- Maximum tightening torque
- 24.0 Nm
- O-Ring DIN 3771
- 10x1,5

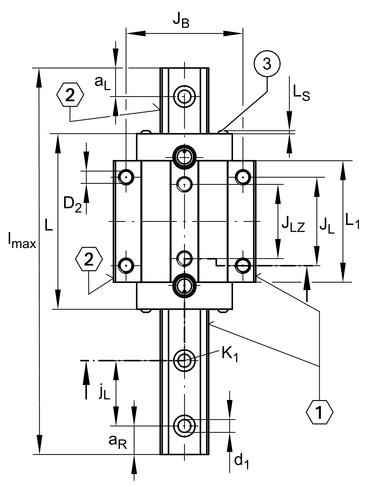

- Overall length carriage
- 107.0 mm
- PFAS
- nein

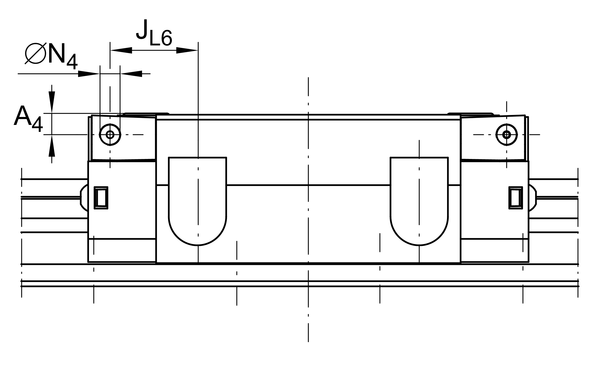

- Position lubrication connector
- 22.8 mm
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size Code
- 25

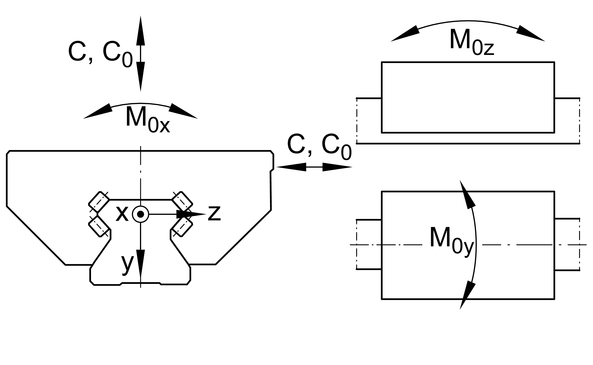

- Static moment rating about X axis
- 440.0 Nm
- Static moment rating about Y axis
- 1200.0 Nm
- Static moment rating about Z axis
- 1080.0 Nm
- Thread depth
- 10.0 mm
- Version
- E
- Width carriage
- 70.0 mm
- Width rail
- 23.0 mm
