Description

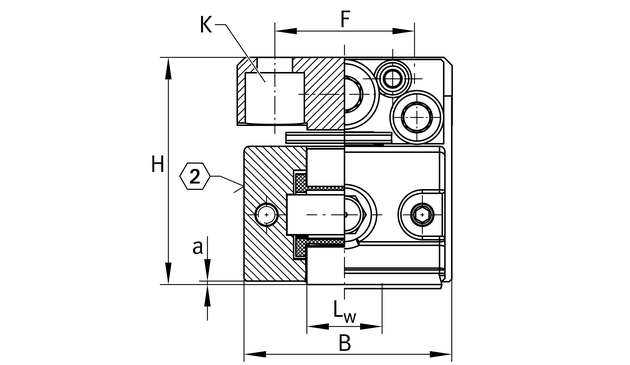

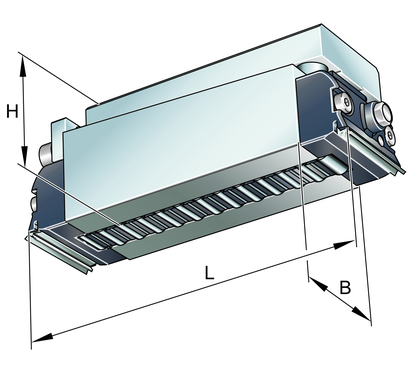

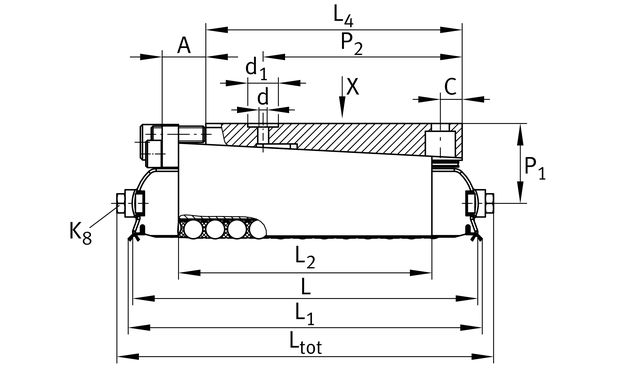

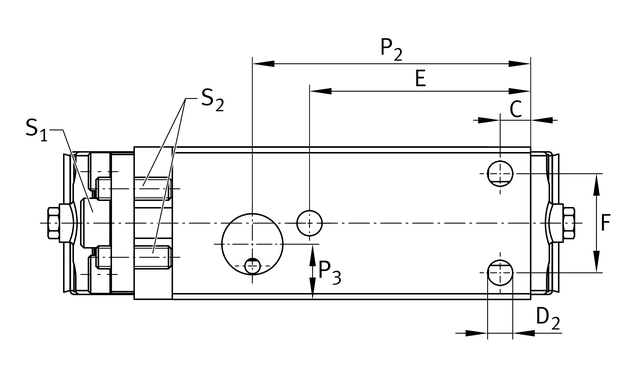

Linear roller bearings, with spacer elements, with integrated adjusting gib, RUSV..-KS
INA
RUSV30069-KS
Linear recirculating roller bearing unit
od EUR 670.58z VAT
netto EUR 545.19 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RUSV30069-KS—
EUR 670.58
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RUSV30069-KS#N1
EAN4047643186766
Masa324.36 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Linear recirculating roller bearing unit
- Part number (SKU)
- RUSV30069-KS#N1
- EAN
- 4047643186766
Dimensions
- Width B
- 27 mm
- Mass
- 324.36 g
Full manufacturer specification19 parameters · expand
- Adjustment maximum
- 0.37 mm
- Adjustment screw revolution
- 0.035 mm
- Basic dynamic load capacity
- 42000.0 N
- Basic static load capacity
- 66000.0 N
- Height
- 30.0 mm
- Hexagon socket adjusting screw
- 3.0 mm
- Hexagon socket counter forcing screw
- 2.0 mm
- Length total
- 82.0 mm

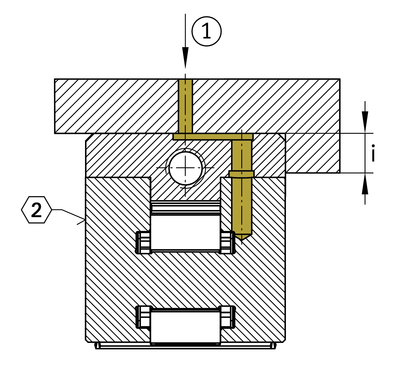

- Lubrication connector DIN3405-A
- M6
- Mounting dimension
- 4.0 mm
- PFAS
- nein
- REACH
- REACH_SVHC!
- RoHS
- RoHS compliant with declarable substances
- Screw stroke A
- 7.0 mm
- Size Code
- 30069
- Size thread k DIN
- M4
- Suffix
- KS
- Suitable Guide Rails
- UG6628, UGN6628, UZ6628, UZN6628, UFK3210, UFB4710
- Tightening torque fixing screws
- 5.0 Nm
