Description

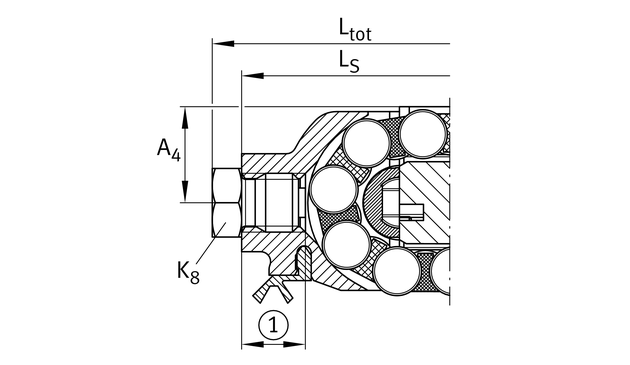

Linear roller bearings with spacer elements, with end face lubrication connectors RUS..
INA
RUS19105-KS-GR3/-10-15
Linear recirculating roller bearing unit
od EUR 674.62z VAT
netto EUR 548.47 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RUS19105-KS-GR3/-10-15—
EUR 674.62
Cheaper in larger quantities
| from 10 pcs | EUR 521.05 | −5% |
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RUS19105-KS-GR3/-10-15#N
EAN4047643184045
Masa323 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Linear recirculating roller bearing unit
- Part number (SKU)
- RUS19105-KS-GR3/-10-15#N
- EAN
- 4047643184045
Dimensions
- Width B
- 27 mm
- Mass
- 323 g
Full manufacturer specification18 parameters · expand
- Adjustment gib
- VUS19105-A
- Basic dynamic load rating
- 68000.0 N
- Basic static load rating
- 123000.0 N
- Fixing screws below (DIN ISO 4762-12.9)
- M3
- Fixing screws top (DIN ISO 4762-12.9)
- M4
- Height
- 19.0 mm
- Lubrication connection DIN3405-A
- M6
- Minimum support length
- 85.0 mm
- Mounting dimension
- 79.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 19105
- Suffix
- KS
- Suitable Guide rail
- UG6628, UGN6628, UZ6628, UZN6628, UFK3210, UFB4710
- Tightening torque fixing screws
- 1.8 Nm
- Tightening torrque fixing screws
- 5.0 Nm
- Tolerance
- 0.1 mm
- Total length
- 117.1 mm
