Description

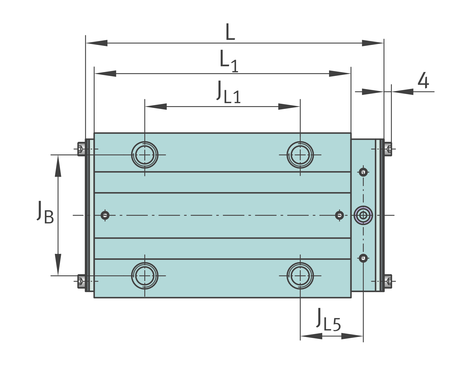

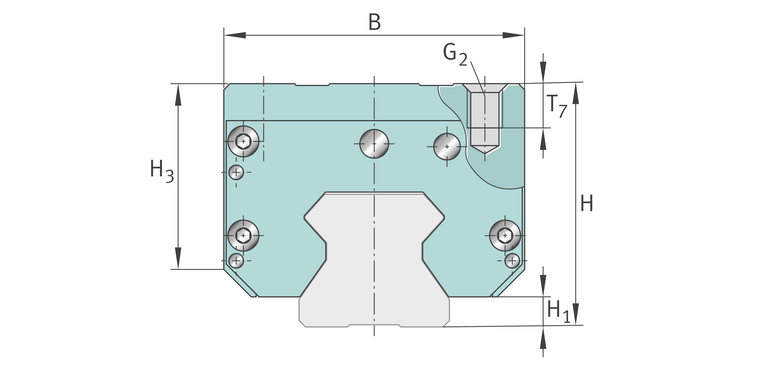

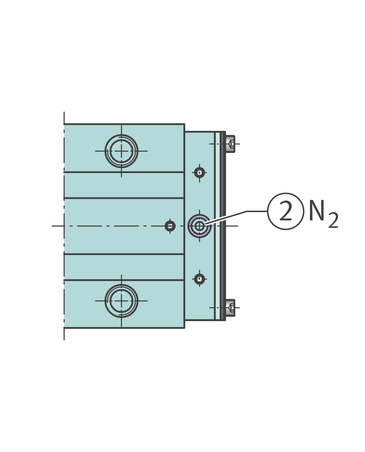

Clamping element RUKS..-D-A-H-SO,for linear recirculating roller bearing and guideway assembly, oil connector on top
INA
RUKS55-D-A-H-SO
Braking/clamping element
od EUR 2,444.66z VAT
netto EUR 1,987.53 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RUKS55-D-A-H-SO—
EUR 2,444.66
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RUKS55-D-A-H-SO#N
EAN4054368251976
Masa6.55 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Braking/clamping element
- Part number (SKU)
- RUKS55-D-A-H-SO#N
- EAN
- 4054368251976
Dimensions
- Mass
- 6.55 kg
Full manufacturer specification21 parameters · expand
- Depth thread
- 15.0 mm
- Design
- H
- Distance
- 50.5 mm
- Height sytem
- 80.0 mm
- Hole pattern lengthwise
- 75.0 mm
- Hole pattern width
- 75.0 mm
- Inner construction
- A
- Length of clamping element
- 186.3 mm
- Length saddle plate
- 163.0 mm
- Max diameter lubrication hole adjacent constr
- 6.0 mm
- Oil feed
- SO
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 55
- Size thread above for DIN ISO 4762-12.9
- M12
- Space (system)
- 11.0 mm
- Suitable guideway
- TSX55-E; TSX55-F
- Suitable system
- RUE55-E; RUE55-F
- Tightening torque above
- 140.0 Nm
- Version
- D
- Width clamping element
- 98.0 mm
