Description

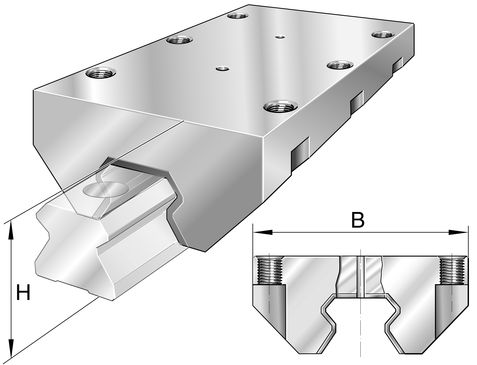

Damping carriage, recirculating roller bearing unit
INA
RUDS55X225-D
Damping carriage, recirculating roller bearing unit
od EUR 1,171.06z VAT
netto EUR 952.08 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RUDS55X225-D—
EUR 1,171.06
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RUDS55X225-D#N1
EAN4047643181051
Masa9.90 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
17 parametersIdentification
- Manufacturer
- INA
- Type
- Damping carriage, recirculating roller bearing unit
- Part number (SKU)
- RUDS55X225-D#N1
- EAN
- 4047643181051
Dimensions
- Width B
- 138 mm
- Mass
- 9.90 kg
Full manufacturer specification11 parameters · expand
- Fixing screws
- M12
- Height
- 70.0 mm
- Length
- 225
- Number of fixing threads
- 6
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 55
- Standard length 2
- 225
- Suffix
- D
- Suitable linear guidances
- RUE55-E, RUE55-E-L, RUE55-F, RUE55-F-L
- Tightening torque
- 144.0 Nm
