Description
Damping carriage, recirculating roller bearing unit
INA
RUDS25X150-D-H
Damping carriage, recirculating roller bearing unit
od EUR 675.59z VAT
netto EUR 549.26 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RUDS25X150-D-H—
EUR 675.59
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RUDS25X150-D-H#N1
EAN4054364906139
Masa1.36 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
18 parametersIdentification
- Manufacturer
- INA
- Type
- Damping carriage, recirculating roller bearing unit
- Part number (SKU)
- RUDS25X150-D-H#N1
- EAN
- 4054364906139

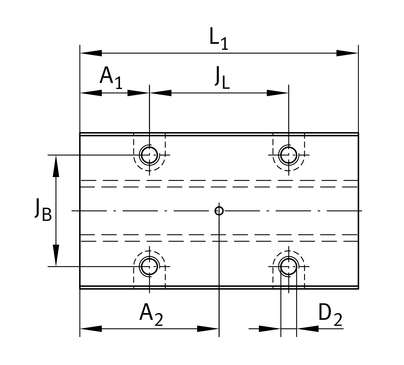

Dimensions
- Width B
- 47 mm
- Mass
- 1.36 kg
Full manufacturer specification12 parameters · expand
- Fixing screws
- M6
- Height
- 40.0 mm
- Length
- 150
- Number of fixing threads
- 4
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 25
- Standard length 1
- 150
- Suffix
- D
- Suitable linear guidances
- RUE25-E-H, RUE25-E-HL, RUE25-F-H, RUE25-F-HL
- Tightening torque
- 17.4 Nm
- Type
- H
