Description

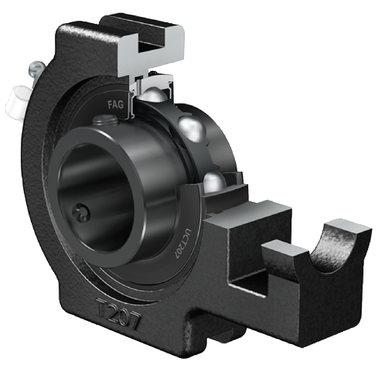

Take-up housing units RTUE, cast iron housing, radial insert ball bearing with eccentric locking collar, R seals
INA
RTUE70-XL
Take-up housing unit
⌀70 × 125 mm
od EUR 245.20z VAT
netto EUR 199.35 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RTUE70-XL—
EUR 245.20
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RTUE70-XL#N1>1
EAN4064327885722
Wymiary⌀70 × 125 mm
Masa6.82 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
56 parametersIdentification
- Manufacturer
- INA
- Type
- Take-up housing unit
- Part number (SKU)
- RTUE70-XL#N1>1
- EAN
- 4064327885722
Dimensions
- Bore d
- 70 mm
- Outside diameter D
- 125 mm
- Mass
- 6.82 kg
Full manufacturer specification49 parameters · expand
- Basic dynamic load rating
- 66000.0 N
- Basic static load rating
- 44000.0 N
- Bearing designation
- GE70-XL-KRR-B
- Bearing in kit
- GE70-XL-KRR-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance guidance grooves
- 151.0 mm
- Distance of raceway to locking collar
- 44.5 mm
- Distance shaft axis
- 135.0 mm
- Fixing bore
- 41.0 mm
- Height
- 166.0 mm
- Height bearing seat
- 135.0 mm
- Height housing fixing side
- 110.0 mm
- Height recess
- 70.0 mm
- Housing
- TUE13/14
- Housing height
- 166.0 mm
- Housing in kit
- RTUE70-XL
- Housing length
- 214.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 1
- Housing shape
- Loch_seitlich
- Housing sort
- Take-up
- Housing split
- Nein
- Housing width
- 66.0 mm
- Inner diameter bearing
- 70.0 mm
- Length fixed link
- 20.0 mm
- Length guidance groove
- 120.0 mm
- Length total
- 214.0 mm
- Location on shaft
- Acc
- Locking collar total width
- 66.0 mm
- Lower distance guidance groove tolerance
- -0.25 mm
- Marketing category
- XL
- Material
- GG
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 125.0 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Upper distance guidance groove tolerance
- 0.25 mm
- Width guidance groove
- 25.0 mm
- Width guidance groove clearance
- H13
- Width housing
- 50.0 mm
- Width housing fixing side
- 70.0 mm
- Width recess
- 35.0 mm
