Description

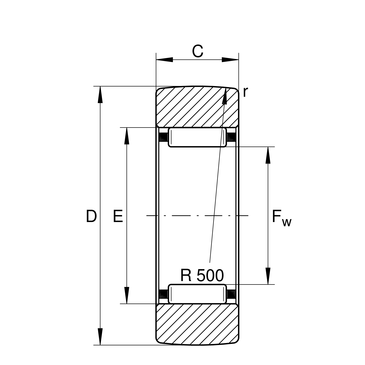

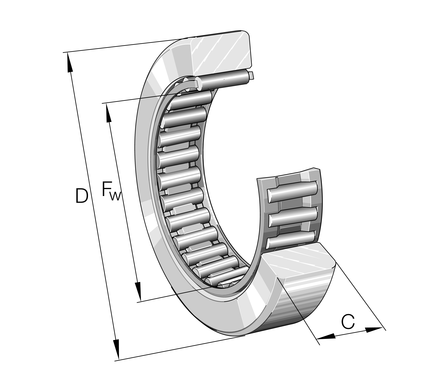

Yoke type track rollers RSTO.., single row needle roller bearings with particularly thick-walled outer ring, needle roller and cage assembly, without inner ring, without axial guidance of the outer ring, open, inner ring, outer ring and needle roller and cage assembly can be mounted separately
INA
RSTO10
Yoke type track roller
od EUR 23.96z VAT
netto EUR 19.48 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RSTO10—
EUR 23.96
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RSTO10#N1
EAN4012802416589
Masa44.17 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Yoke type track roller
- Part number (SKU)
- RSTO10#N1
- EAN
- 4012802416589
Dimensions
- Outside diameter D
- 30 mm
- Mass
- 44.17 g
Load ratings and operation
- Dynamic load rating C
- 8800 N
- Static load rating C₀
- 9900 N
- Sealing
- Without
Full manufacturer specification12 parameters · expand
- Fatigue load limit, radial
- 1470.0 N
- Minimum chamfer dimension
- 0.3 mm
- Outer ring profile
- R500
- PFAS
- nein
- Raceway diameter outer ring
- 20.0 mm
- Radius of outer ring outside profile
- 500.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Speed on permanent grease lubrication
- 5500.0 1/min
- Under roller diameter
- 14.0 mm
- Width, outer ring
- 11.8 mm
