Description

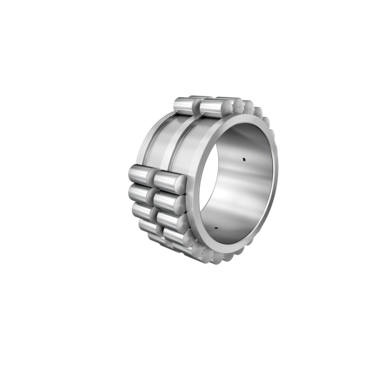

Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
INA
RSL185011-A
Cylindrical roller bearing
od EUR 140.81z VAT
netto EUR 114.48 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RSL185011-A—
EUR 140.81
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RSL185011-A#N1
EAN4012802606508
Masa821 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Cylindrical roller bearing
- Part number (SKU)
- RSL185011-A#N1
- EAN
- 4012802606508
- Tolerance class
- PN

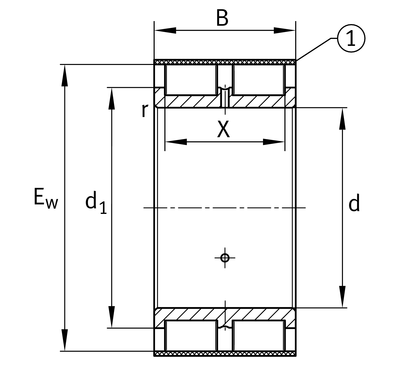

Dimensions
- Width B
- 46 mm
- Mass
- 821 g
Load ratings and operation
- Dynamic load rating C
- 182000 N
- Static load rating C₀
- 275000 N
- Limiting speed
- 4550 1/min
Full manufacturer specification14 parameters · expand
- Design
- A
- Fatigue load limit, radial
- 37000.0 N
- Minimum chamfer dimension
- 1.1 mm
- Minimum diameter shaft shoulder
- 68.5 mm
- Number of rows
- 2
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outer envelope circle
- 83.54 mm
- PFAS
- nein
- Raceway width
- 39.0 mm
- REACH
- REACH conform
- Reference speed
- 2950.0 1/min
- Rib diameter inner ring
- 55.0 mm
- RoHS
- RoHS compliant
