INA
RSHEOC20-VA-FD

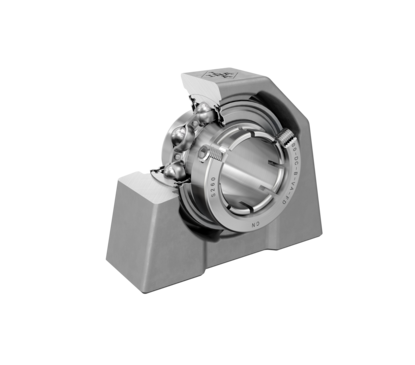

Plummer block housing unit
od EUR 468.30z VAT
netto EUR 380.73 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RSHEOC20-VA-FD—
EUR 468.30
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RSHEOC20-VA-FD#N1
EAN4064328486911
Masa480 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
43 parametersIdentification
- Manufacturer
- INA
- Type
- Plummer block housing unit
- Part number (SKU)
- RSHEOC20-VA-FD#N1
- EAN
- 4064328486911
Dimensions
- Bore d
- 20 mm
- Mass
- 480 g
Load ratings and operation
- Dynamic load rating C
- 11100 N
- Static load rating C₀
- 5400 N
Full manufacturer specification35 parameters · expand
- Basic dynamic load rating
- 11100.0 N
- Basic static load rating
- 5400.0 N
- Bearing designation
- OCE20-DC-B-VA-FD
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Distance between mounting bolt centerlines (length)
- 50.8 mm
- Distance fixing bore
- 50.8 mm
- Distance of raceway to locking collar
- 20.6 mm
- Distance shaft axis
- 33.3 mm
- Fatigue load limit, radial
- 500.0 N
- Height
- 58.7 mm
- Height bearing seat
- 33.3 mm
- Housing
- GEH.SHE04-VA-NAT
- Housing height
- 58.7 mm
- Housing length
- 76.0 mm
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Fuss_kurz
- Housing sort
- Plummer
- Housing split
- Nein
- Housing width
- 34.8 mm
- Inner diameter bearing
- 20.0 mm
- Length total
- 76.0 mm
- Location on shaft
- Acc
- Material
- VA
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- Protecting cap
- KASK04-VA-G-NAT
- Sealing type
- LIP
- Thread fixing bore
- 3/8-16UNC
- Thread length
- 13.0 mm
- Total width unit
- 34.8 mm
- Width (base)
- 30.0 mm
