INA
RSHEHOC25-VA-FD

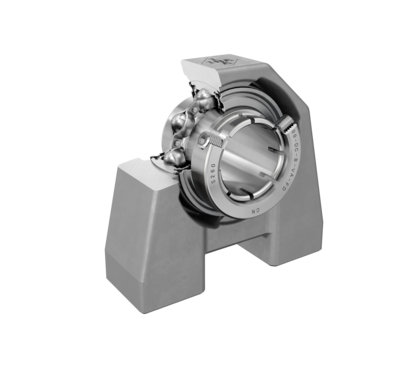

Plummer block housing unit
od EUR 559.64z VAT
netto EUR 454.99 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RSHEHOC25-VA-FD—
EUR 559.64
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RSHEHOC25-VA-FD#N
EAN4064328419520
Masa810 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
44 parametersIdentification
- Manufacturer
- INA
- Type
- Plummer block housing unit
- Part number (SKU)
- RSHEHOC25-VA-FD#N
- EAN
- 4064328419520
Dimensions
- Bore d
- 25 mm
- Mass
- 810 g
Load ratings and operation
- Dynamic load rating C
- 12200 N
- Static load rating C₀
- 6500 N
Full manufacturer specification36 parameters · expand
- Basic dynamic load rating
- 12200.0 N
- Basic static load rating
- 6500.0 N
- Bearing designation
- OCE25-DC-B-VA-FD
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Distance between mounting bolt centerlines (length)
- 50.8 mm
- Distance fixing bore
- 50.8 mm
- Distance housing base
- 12.7 mm
- Distance of raceway to locking collar
- 22.2 mm
- Distance shaft axis
- 49.2 mm
- Fatigue load limit, radial
- 550.0 N
- Height
- 80.7 mm
- Height bearing seat
- 49.2 mm
- Housing
- GEH.SHEH05-VA-NAT
- Housing height
- 80.7 mm
- Housing length
- 84.0 mm
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Fuss_kurz
- Housing sort
- Plummer
- Housing split
- Nein
- Housing width
- 37.2 mm
- Inner diameter bearing
- 25.0 mm
- Length total
- 84.0 mm
- Location on shaft
- Acc
- Material
- VA
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- Protecting cap
- KASK05-VA-G-NAT
- Sealing type
- LIP
- Thread fixing bore
- 3/8-16UNC
- Thread length
- 13.0 mm
- Total width unit
- 37.2 mm
- Width (base)
- 30.0 mm
