Description

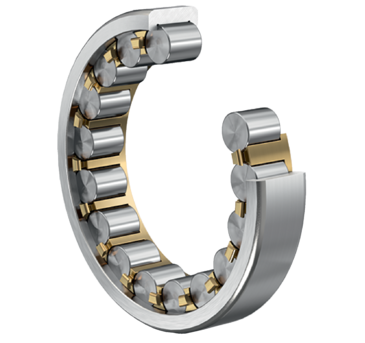

Cylindrical roller bearing RNU..-XL-M1A, with cage, single row, non-locating bearing, 2 ribs on outer ring, no inner ring, type RNU
FAG
RNU1026-XL-M1A
Cylindrical roller bearing
od EUR 326.02z VAT
netto EUR 265.06 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RNU1026-XL-M1A—
EUR 326.02
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RNU1026-XL-M1A#N1
EAN4012801024365
Masa2.72 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
29 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- RNU1026-XL-M1A#N1
- EAN
- 4012801024365
- Cage
- M1A
- Tolerance class
- PN

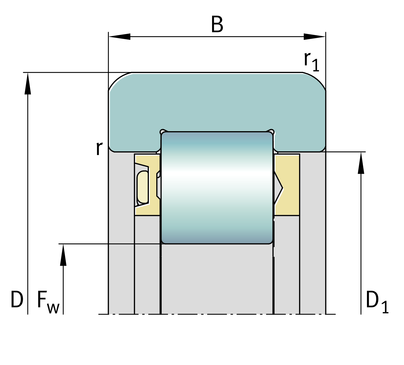

Dimensions
- Outside diameter D
- 200 mm
- Width B
- 33 mm
- Mass
- 2.72 kg
Load ratings and operation
- Dynamic load rating C
- 212000 N
- Static load rating C₀
- 250000 N
- Limiting speed
- 6500 1/min
Full manufacturer specification17 parameters · expand
- Cage
- M1A
- Design
- Standard
- Fatigue load limit, radial
- 39500.0 N
- Marketing category
- XL
- Maximum diameter of housing shoulder
- 191.0 mm
- Maximum recess radius
- 2.0 mm
- Minimum chamfer dimension
- 2.0 mm
- Minimum rib diameter outer ring
- 175.9 mm
- Number of rows
- 1
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter inner ring
- 148.0 mm
- Raceway diameter outer ring
- 182.0 mm
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 3500.0 1/min
- RoHS
- RoHS compliant with declarable substances
