Description

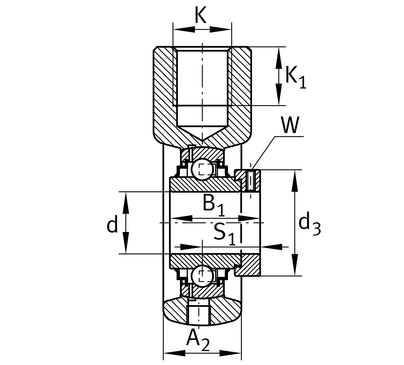

Take-up housing units RHE, cast iron housing, radial insert ball bearing with eccentric locking collar, R seals
INA
RHE35-XL
Take-up housing unit
⌀35 × 72 mm
od EUR 61.41z VAT
netto EUR 49.93 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RHE35-XL—
EUR 61.41
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RHE35-XL#N1
EAN4012802788488
Wymiary⌀35 × 72 mm
Masa1.38 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
46 parametersIdentification
- Manufacturer
- INA
- Type
- Take-up housing unit
- Part number (SKU)
- RHE35-XL#N1
- EAN
- 4012802788488
Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 72 mm
- Mass
- 1.38 kg
Full manufacturer specification39 parameters · expand
- Basic dynamic load rating
- 27500.0 N
- Basic static load rating
- 15300.0 N
- Bearing designation
- GE35-XL-KRR-B
- Bearing in kit
- GE35-XL-KRR-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance shaft axis
- 76.0 mm
- Height bearing seat
- 76.0 mm
- Height housing fixing side
- 40.0 mm
- Housing
- HE07
- Housing height
- 90.0 mm
- Housing in kit
- RHE35-XL
- Housing length
- 122.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 1
- Housing shape
- Loch_unten
- Housing sort
- Take-up
- Housing split
- Nein
- Housing total width
- 90.0 mm
- Housing width
- 51.3 mm
- Inner diameter bearing
- 35.0 mm
- Length of guidance face
- 49.0 mm
- Length total
- 122.0 mm
- Location on shaft
- Acc
- Marketing category
- XL
- Material
- GG
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 72.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Thread depth
- 24.0 mm
- Thread fixing bore
- M24
- Width housing
- 32.0 mm
