Description

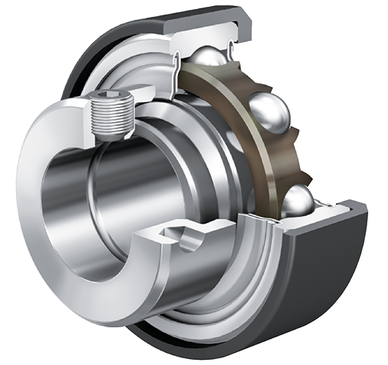

Radial insert ball bearings RCR, with rubber interliner, location by eccentric locking collar, P seals on both sides
INA
RCRB25/57-XL-FA106
Radial insert ball bearing
⌀25 × 57.3 mm
od EUR 32.69z VAT
netto EUR 26.58 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RCRB25/57-XL-FA106—
EUR 32.69
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RCRB25/57-XL-FA106#N1
EAN4012802790078
Wymiary⌀25 × 57.3 mm
Masa202 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- RCRB25/57-XL-FA106#N1
- EAN
- 4012802790078

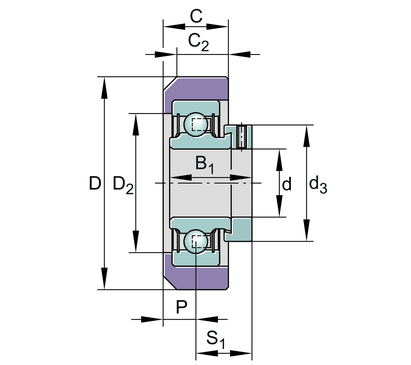

Dimensions
- Bore d
- 25 mm
- Outside diameter D
- 57.3 mm
- Mass
- 202 g
Load ratings and operation
- Dynamic load rating C
- 14000 N
- Static load rating C₀
- 7800 N
Full manufacturer specification16 parameters · expand
- Bearing designation
- RAE25-XL-NPP-FA106
- Calculation factor
- 13.8
- Distance raceway of rubber interliner to face side
- 9.8 mm
- Distance raceway to locking collar
- 23.5 mm
- Fatigue load limit, radial
- 370.0 N
- Flange diameter rubber interliner
- 44.5 mm
- Hardness rubber interliner
- 70.0 °
- Load carrying capacity (rubber interliner)
- 1400.0 N
- Locking collar total width
- 31.0 mm
- Manufacturing instruction
- FA106
- Marketing category
- XL
- Outside diameter locking collar/locknut
- 37.5 mm
- PFAS
- nein
- REACH
- REACH_YES_7439-92-1!
- Width outside profile of rubber interliner
- 17.5 mm
- Width, outer ring
- 19.8 mm
