Description

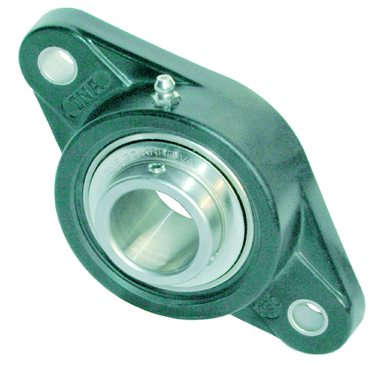

Flanged housing unit RCJTY..-TV-VA
INA
RCJTY35-TV-VA-HLA
Flanged housing unit
od EUR 155.21z VAT
netto EUR 126.19 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RCJTY35-TV-VA-HLA—
EUR 155.21
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RCJTY35-TV-VA-HLA#N1
EAN4054366714985
Masa641 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
50 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RCJTY35-TV-VA-HLA#N1
- EAN
- 4054366714985
Dimensions
- Bore d
- 35 mm
- Width B
- 42.9 mm
- Mass
- 641 g
Load ratings and operation
- Dynamic load rating C
- 24600 N
- Static load rating C₀
- 14600 N
Full manufacturer specification41 parameters · expand
- Basic dynamic load rating
- 24600.0 N
- Basic static load rating
- 14600.0 N
- Bearing designation
- GYE35-XL-KRR-B-FA107-VA
- Bearing in kit
- GYE35-KRR-B-FA107-VA
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Distance between mounting bolt centerlines (length)
- 130.0 mm
- Distance fixing bore
- 130.0 mm
- Distance raceway
- 18.0 mm
- Fatigue load limit, radial
- 720.0 N
- Fixing bore
- 13.0 mm
- Flange width
- 90.0 mm
- Height bearing seat
- 81.5 mm
- Height flange
- 163.0 mm
- Height housing
- 32.8 mm
- Housing
- GEHCJT07-TV
- Housing height
- 163.0 mm
- Housing in kit
- RCJTY35-TV-VA-HLA
- Housing length
- 90.0 mm
- Housing material
- PL
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 43.4 mm
- Inner diameter bearing
- 35.0 mm
- Load carrying capacity (housing)
- 14900.0 N
- Location on shaft
- Acc
- Material
- TV
- Number of housings
- 1.0
- Number of screwing holes
- 2.0
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- Protecting cap
- KASK07
- Sealing type
- LIP
- Thickness of flange
- 16.1 mm
- Total height unit
- 43.4 mm
- Width across flats
- 3.0 mm
