Description
Plummer block housing units, FD design
INA
RASE20-TV-VA-FD
Plummer block housing unit
⌀20 × 47 mm
od EUR 88.36z VAT
netto EUR 71.84 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RASE20-TV-VA-FD—
EUR 88.36
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RASE20-TV-VA-FD#N1
EAN4064328162853
Wymiary⌀20 × 47 mm
Masa300 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
54 parametersIdentification
- Manufacturer
- INA
- Type
- Plummer block housing unit
- Part number (SKU)
- RASE20-TV-VA-FD#N1
- EAN
- 4064328162853

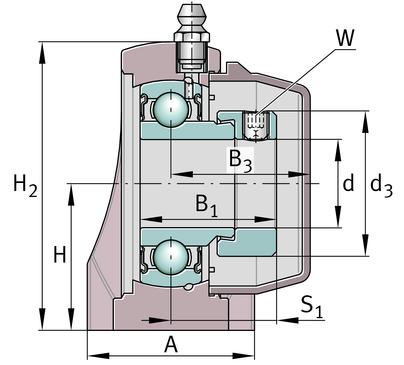

Dimensions
- Bore d
- 20 mm
- Outside diameter D
- 47 mm
- Mass
- 300 g
Full manufacturer specification47 parameters · expand
- Basic dynamic load rating
- 12840.0 N
- Basic static load rating
- 6650.0 N
- Bearing designation
- GE20-KRR-B-FA107-VA-FD
- Bearing in kit
- GE20-KRR-B-FA107-VA-FD
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- 1/4"-28 UNF
- Corrosion resistant bearing
- VA
- Distance between mounting bolt centerlines (length)
- 95.0 mm
- Distance fixing bore
- 95.0 mm
- Distance housing centre to cap end
- 31.65 mm
- Distance raceway to locking collar
- 24.1 mm
- Distance shaft axis
- 33.3 mm
- End cap
- KASK04-S-G-WHT
- Height
- 65.5 mm
- Height (base)
- 14.2 mm
- Height bearing seat
- 33.3 mm
- Housing
- GEH.ASE04-TV-WHT
- Housing height
- 65.5 mm
- Housing in kit
- RASE20-TV-VA-FD
- Housing length
- 127.0 mm
- Housing material
- PL
- Housing opening
- combi
- Housing qty bolts
- 2
- Housing shape
- Fuss_lang
- Housing sort
- Plummer
- Housing split
- Nein
- Housing width
- 38.0 mm
- Inner diameter bearing
- 20.0 mm
- Length
- 127.0 mm
- Length (slot)
- 14.0 mm
- Location on shaft
- Acc
- Locking collar total width
- 31.0 mm
- Material
- TV-FD
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -30.0 °C
- Outer diameter bearing
- 47.0 mm
- Outside diameter eccentric locking collar
- 33.3 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Special material
- TV
- Width (base)
- 38.0 mm
- Width (slot)
- 11.0 mm
- Width of flats
- 3.0 mm
