Description
Radial insert ball bearings RAE..-NPP-NR, cylindrical outer ring, location by eccentric locking collar, slots in outer ring, P seals on both sides
INA
RAE35-XL-NPP-NR
Radial insert ball bearing
⌀35 × 72 × 25.4 mm
od EUR 29.66z VAT
netto EUR 24.11 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RAE35-XL-NPP-NR—
EUR 29.66
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RAE35-XL-NPP-NR#N1
EAN4012802820812
Wymiary⌀35 × 72 × 25.4 mm
Masa530 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- RAE35-XL-NPP-NR#N1
- EAN
- 4012802820812

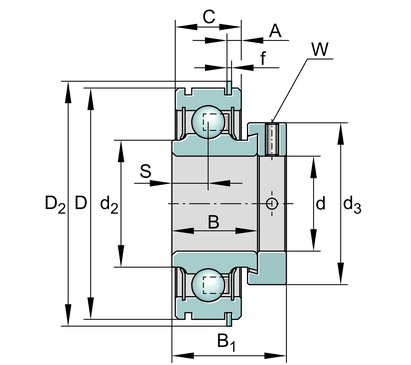

Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 72 mm
- Width B
- 25.4 mm
- Mass
- 530 g
Load ratings and operation
- Dynamic load rating C
- 25500 N
- Static load rating C₀
- 15300 N
- Sealing
- NPP
Full manufacturer specification17 parameters · expand
- Calculation factor
- 13.8
- Distance raceway
- 9.5 mm
- Distance snap ring
- 4.98 mm
- Fatigue load limit, radial
- 730.0 N
- Locking collar total width
- 39.0 mm
- Lower distance retaining ring tolerance
- -0.3 mm
- Lower width snap ring tolerance
- -0.1 mm
- Marketing category
- XL
- Outside diameter locking collar/locknut
- 55.0 mm
- Outside diameter snap ring
- 78.6 mm
- PFAS
- nein
- Rib diameter sealing inner ring
- 44.6 mm
- Sealing
- NPP
- Upper distance retaining ring tolerance
- 0.0 mm
- Upper width snap ring tolerance
- 0.0 mm
- Width of flats
- 5.0 mm
- Width, outer ring
- 19.0 mm
