Product photo

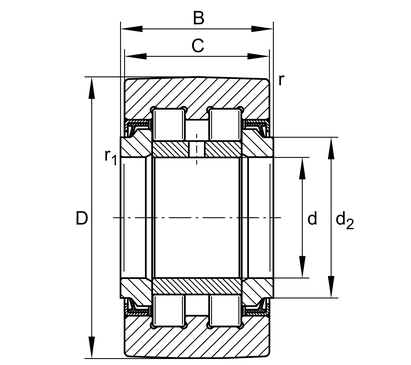

Technical drawing

Description

Yoke type track rollers PWTR..-2RS-XL, double row cylindrical roller bearings with particularly thick-walled outer ring, with a central rib, full complement cylindrical roller set and an inner ring, the outer ring is guided axially by the central rib and rolling elements, protected lip seal on both sides, X-life design

INA

PWTR1747-2RS-XL

Yoke type track roller

⌀17 × 47 mm

od EUR 65.33z VAT

netto EUR 53.11 · cena detaliczna

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

PWTR1747-2RS-XL—
EUR 65.33

Cheaper in larger quantities

from 75 pcsEUR 48.87−8%
To orderapprox. 10 days

Brought in to order — approx. 10 working days

Symbol (SKU)PWTR1747-2RS-XL#N1
EAN4047643142328
Wymiary⌀17 × 47 mm
Masa218 g

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

Open a business account →

Technical data

25 parameters
Datasheet (PDF)Full manufacturer specification — drawing, dimensions, tolerances.

Identification

Manufacturer
INA
Type
Yoke type track roller
Part number (SKU)
PWTR1747-2RS-XL#N1
EAN
4047643142328

Dimensions

Bore d
17 mm
Outside diameter D
47 mm
Mass
218 g

Load ratings and operation

Dynamic load rating C
15900 N
Static load rating C₀
18400 N
Sealing
2RS
Full manufacturer specification15 parameters · expand
Fatigue load limit, radial
2480.0 N
Marketing category
XL
Minimum chamfer dimension
1.0 mm
Outer ring profile
IOP
Permissible dynamic load outer ring, radial
18400.0 N
Permissible static load, radial
18400.0 N
PFAS
nein
REACH
REACH conform
Relubrication
IR
RoHS
RoHS compliant
Sealing
2RS
Speed on permanent grease lubrication
5000.0 1/min
Stop diameter of thrust washer
22.0 mm
Width of the bearing
21.0 mm
Width, outer ring
20.0 mm
