Description

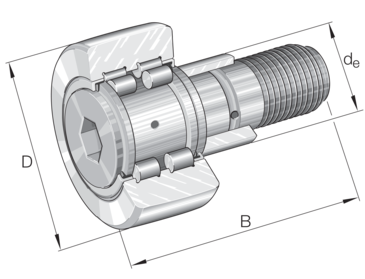

Stud type track rollers PWKRE..-2RS-XL, double row cylindrical roller bearings with particularly thick-walled outer ring, with a central rib, full complement cylindrical roller set and with a solid roller stud with fixing thread and a mounting aid, the outer ring is guided axially by the central rib and rolling elements, protected lip seal on both sides, with eccentric collar, X-life design
PWKRE72-2RS-RR-XL
Stud type track roller
od EUR 286.21z VAT
netto EUR 232.69 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Brought in to order — approx. 10 working days
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
40 parametersIdentification
- Manufacturer
- INA
- Type
- Stud type track roller
- Part number (SKU)
- PWKRE72-2RS-RR-XL#N1
- EAN
- 4054366811219

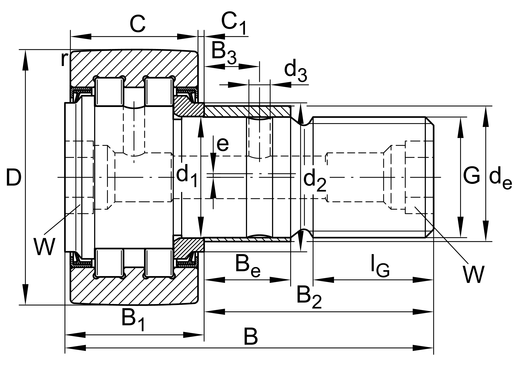

Dimensions
- Outside diameter D
- 72 mm
- Width B
- 80 mm
- Mass
- 1.00 kg
Load ratings and operation
- Dynamic load rating C
- 39000 N
- Static load rating C₀
- 53000 N
- Sealing
- 2RS
Full manufacturer specification30 parameters · expand
- Assembling aid head
- I6
- Assembling aid stud
- I6
- Bolt/stud length effectively
- 49.5 mm
- Coating
- RR
- Diameter of eccentric
- 28.0 mm
- Drive-fit lubrication nipple
- NIPA3X9,5
- Drive-fit lubrication nipple unmounted
- 2x
- Eccentricity
- 1.0 mm
- Fatigue load limit, radial
- 7100.0 N
- Fit diameter of roller stud / stud
- 24.0 mm
- Marketing category
- XL
- Minimum chamfer dimension
- 1.1 mm
- Outer ring profile
- IOP
- Permissible dynamic load outer ring, radial
- 38500.0 N
- Permissible static load, radial
- 53000.0 N
- PFAS
- nein
- Protrusion outer ring to thrust washer
- 1.3 mm
- REACH
- REACH compliant with declarable lead proportion
- Relubrication
- KS
- RoHS
- RoHS compliant with declarable substances
- Sealing
- 2RS
- Speed on permanent grease lubrication
- 2200.0 1/min
- Stop diameter of thrust washer
- 44.0 mm
- Thread
- M24X1,5
- Thread length
- 25.0 mm
- Tightening torque nut
- 220.0 Nm
- Width of flats
- 14.0 mm
- Width, eccentric
- 22.0 mm
- Width, outer ring
- 28.0 mm
- Witdh of thrust washer
- 30.6 mm
