Description

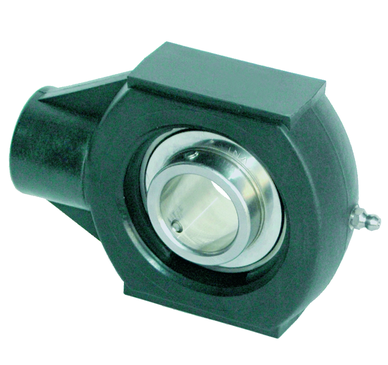

Take-up housing unit PHE..-TV, RIBB plastic
INA
PHE20-TV-FA125.5
Take-up housing unit
⌀20 × 47 mm
od EUR 50.13z VAT
netto EUR 40.76 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
PHE20-TV-FA125.5—
EUR 50.13
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)PHE20-TV-FA125.5#N1
EAN4012802830835
Wymiary⌀20 × 47 mm
Masa370 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
47 parametersIdentification
- Manufacturer
- INA
- Type
- Take-up housing unit
- Part number (SKU)
- PHE20-TV-FA125.5#N1
- EAN
- 4012802830835
Dimensions
- Bore d
- 20 mm
- Outside diameter D
- 47 mm
- Mass
- 370 g
Full manufacturer specification40 parameters · expand
- Basic dynamic load rating
- 12400.0 N
- Basic static load rating
- 6000.0 N
- Bearing designation
- GRAE20-NPP-B-FA107/125.5
- Bearing in kit
- GRAE20-NPP-B-FA107/125.5
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- 1/4-28 UNF
- Distance shaft axis
- 63.5 mm
- End cap
- KASK04-S-G
- Height (housing, mounting side)
- 36.0 mm
- Height bearing seat
- 64.0 mm
- Housing
- HE04-TV
- Housing height
- 65.0 mm
- Housing in kit
- PHE20-TV-FA125.5
- Housing length
- 99.0 mm
- Housing material
- PL
- Housing opening
- combi
- Housing qty bolts
- 1
- Housing shape
- Loch_unten
- Housing sort
- Take-up
- Housing split
- Nein
- Housing total width
- 65.0 mm
- Housing width
- 36.0 mm
- Inner diameter bearing
- 20.0 mm
- Length
- 99.0 mm
- Length guidance grooves
- 47.0 mm
- Location on shaft
- Acc
- Manufacturing instruction
- FA125.5
- Material
- TV
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -35.0 °C
- Outer diameter bearing
- 47.0 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Special material
- TV
- Thread fixing bore
- M16
- Width housing
- 27.5 mm
