Description
Plummer block housing unit PASE..-N, RIBB cast iron ASE SAO AK
INA
PASE20-N-FA106
Plummer block housing unit
od EUR 33.62z VAT
netto EUR 27.33 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
PASE20-N-FA106—
EUR 33.62
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)PASE20-N-FA106#N1
EAN4012802801729
Masa580 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- INA
- Type
- Plummer block housing unit
- Part number (SKU)
- PASE20-N-FA106#N1
- EAN
- 4012802801729

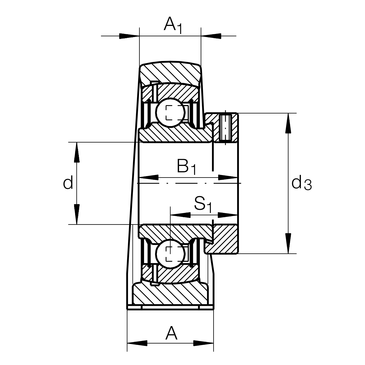

Dimensions
- Bore d
- 20 mm
- Mass
- 580 g
Full manufacturer specification24 parameters · expand
- Bearing designation
- GRAE20-NPP-B
- Bearing sealed
- Yes
- Connection thread for lubrication
- M6
- Distance fixing bore
- 97.0 mm
- Distance shaft axis
- 33.3 mm
- Groove
- N
- Height
- 64.0 mm
- Height (base)
- 14.5 mm
- Housing
- ASE04-E
- Housing in kit
- PASE20-N-FA106
- Length (slot)
- 19.0 mm
- Length total
- 130.0 mm
- Manufacturing instruction
- FA106
- Material
- GG
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- Protecting cap
- KASK04
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Width (base)
- 32.0 mm
- Width (head)
- 19.0 mm
- Width (slot)
- 11.0 mm
