Description

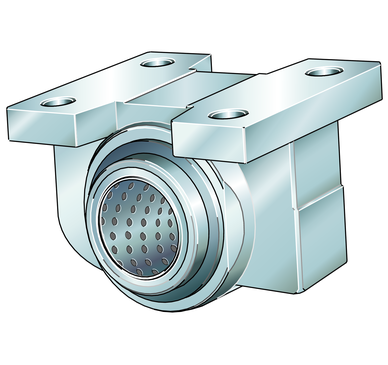

Linear plein bearing and housing unit; sealed on all sides, with relubrication facility
INA
PAGBA50-PP-AS
Linear plain bearing and housing unit
od EUR 202.51z VAT
netto EUR 164.64 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
PAGBA50-PP-AS—
EUR 202.51
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)PAGBA50-PP-AS#N1
EAN4012802061949
Masa1.65 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Linear plain bearing and housing unit
- Part number (SKU)
- PAGBA50-PP-AS#N1
- EAN
- 4012802061949
Dimensions
- Width B
- 130 mm
- Mass
- 1.65 kg
Load ratings and operation
- Sealing
- PP
Full manufacturer specification14 parameters · expand
- Center height
- 50.0 mm
- Diameter of ball complement
- 50.0 mm
- Height
- 98.0 mm
- Length
- 100.0 mm
- Lower tolerance
- 0.2 mm
- Lubrication nipple
- NIPA2
- PFAS
- ja
- REACH
- REACH compliant with declarable lead proportion
- Relubrication facility
- AS
- RoHS
- RoHS compliant with declarable substances
- Seal
- PP
- Size code
- 50
- Tolerance
- h12
- Upper tolerance
- 0.2 mm
