Description

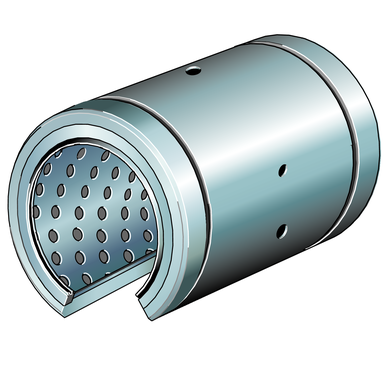

Linear plain bearing; open design, sealed on all sides, with relubrication facility
INA
PABO16-PP-AS
Linear plain bearing
od EUR 77.22z VAT
netto EUR 62.78 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
PABO16-PP-AS—
EUR 77.22
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)PABO16-PP-AS#N1
EAN4012802061567
Masa28 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- INA
- Type
- Linear plain bearing
- Part number (SKU)
- PABO16-PP-AS#N1
- EAN
- 4012802061567

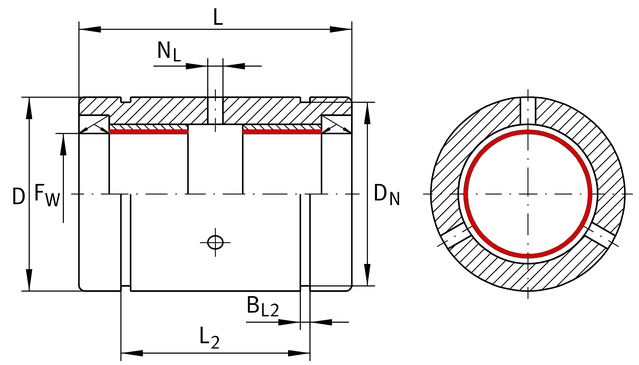

Dimensions
- Outside diameter D
- 26 mm
- Mass
- 28 g
Load ratings and operation
- Sealing
- PP
Full manufacturer specification12 parameters · expand
- Angle
- 78.0 °
- Diameter of ball complement
- 16.0 mm
- Length
- 36.0 mm
- Load capacity stat. C0
- 96000.0 N
- Mounting Dimension
- 24.6 mm
- PFAS
- ja
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Relubrication facility
- AS
- RoHS
- RoHS compliant
- Seal
- PP
- Size code
- 16
- Tolerance
- H13
