Description

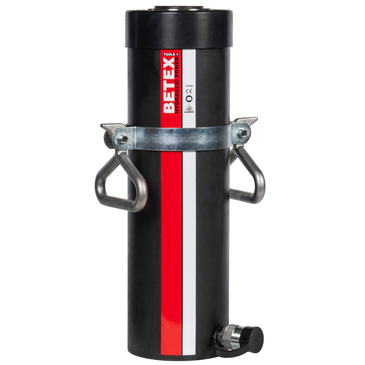

BETEX NSSS Standard cylinder, single-acting, spring return, 75T class
Betex
NSSS-7513
Hydraulic cylinder, 700 bar
od EUR 5,971.81z VAT
netto EUR 4,855.13 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSSS-7513—
EUR 5,971.81
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSSS-7513#N1
EAN4064328452923
Masa59.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSSS-7513#N1
- EAN
- 4064328452923
Dimensions
- Outside diameter D
- 152 mm
- Mass
- 59.00 kg
Full manufacturer specification18 parameters · expand
- Advance force, max.
- 791.0 kN
- Base to advance port
- 30.0 mm
- Capacity class (tons)
- 75
- Collar thread (UN)
- 5¾"-12 UN
- Collar thread, length
- 45.0 mm
- Cylinder bore diameter
- 120.0 mm
- Height, extended
- 824.5 mm
- Height, retracted
- 491.0 mm
- Oil capacity
- 3770.0 cm³
- Operating pressure, max.
- 700.0 bar
- PFAS
- nein
- Plunger diameter
- 95.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Saddle diameter
- 70.0 mm
- Saddle protrusion from plunger
- 3.0 mm
- Series
- NSSS
- Stroke
- 333.5 mm
- Version
- 75T
