Description

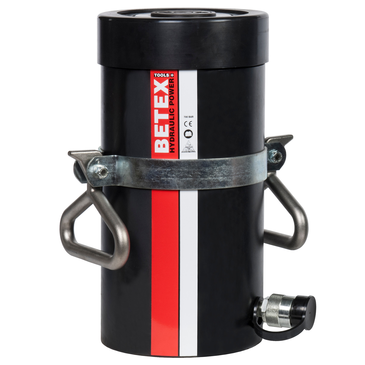

BETEX NSSS Standard cylinder, single-acting, spring return, 100T class
Betex
NSSS-1006
Hydraulic cylinder, 700 bar
od EUR 5,313.54z VAT
netto EUR 4,319.95 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSSS-1006—
EUR 5,313.54
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSSS-1006#N
EAN4064328452176
Masa59.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
27 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSSS-1006#N
- EAN
- 4064328452176
Dimensions
- Outside diameter D
- 177 mm
- Mass
- 59.00 kg
Full manufacturer specification21 parameters · expand
- Advance force, max.
- 1001.0 kN
- Base mounting holes, bolt circle
- 139.0 mm
- Base mounting holes, thread (UNC)
- 3/4"-10 UNC
- Base mounting holes, thread depth
- 25.0 mm
- Base to advance port
- 40.0 mm
- Capacity class (tons)
- 100
- Collar thread (UN)
- 6⅞"-12 UN
- Collar thread, length
- 45.0 mm
- Cylinder bore diameter
- 135.0 mm
- Height, extended
- 528.0 mm
- Height, retracted
- 358.0 mm
- Oil capacity
- 2432.0 cm³
- Operating pressure, max.
- 700.0 bar
- PFAS
- nein
- Plunger diameter
- 105.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Saddle diameter
- 70.0 mm
- Saddle protrusion from plunger
- 3.0 mm
- Series
- NSSS
- Stroke
- 170.0 mm
- Version
- 100T
