Description

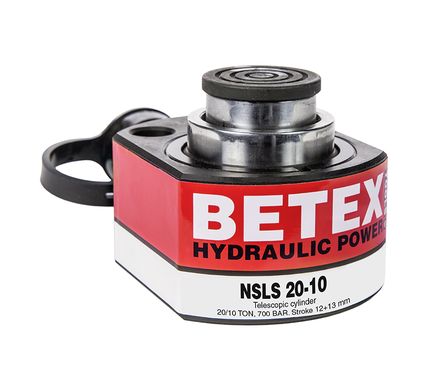

BETEX NSLS Flat cylinder, telescopic, load return, single-acting
Betex
NSLS-20-10
Hydraulic cylinder, 700 bar
od EUR 880.94z VAT
netto EUR 716.21 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSLS-20-10—
EUR 880.94
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSLS-20-10#N
EAN4064328905405
Masa2.60 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
20 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSLS-20-10#N
- EAN
- 4064328905405

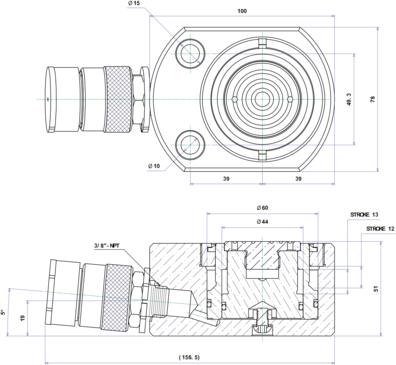

Dimensions
- Outside diameter D
- 60 mm
- Mass
- 2.60 kg
Full manufacturer specification14 parameters · expand
- [Ø]
- 11.0 mm
- Advance force, max.
- 197.9 kN
- Base to advance port
- 19.0 mm
- Capacity class (tons)
- 20+10
- Cylinder bore diameter
- 44.0 mm
- Distance fixing holes
- 36.5 mm
- Height, extended
- 67.0 mm
- Height, retracted
- 42.0 mm
- Oil capacity
- 55.0 cm³
- Operating pressure, max.
- 700.0 bar
- Plunger diameter
- 38.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Saddle protrusion from plunger
- 1.0 mm
- Stroke
- 13.0 mm
