Description

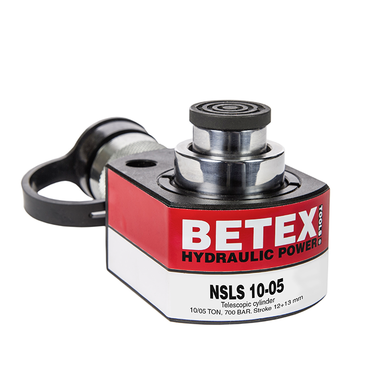

BETEX NSLS Flat cylinder, telescopic, load return, single-acting
Betex
NSLS-10-05
Hydraulic cylinder, 700 bar
od EUR 631.51z VAT
netto EUR 513.42 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSLS-10-05—
EUR 631.51
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSLS-10-05#N
EAN4064328905399
Masa1.50 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
22 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSLS-10-05#N
- EAN
- 4064328905399

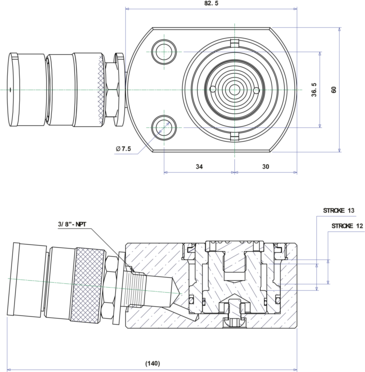

Dimensions
- Outside diameter D
- 60 mm
- Mass
- 1.50 kg
Full manufacturer specification16 parameters · expand
- [Ø]
- 11.0 mm
- Advance force, max.
- 106.4 kN
- Base to advance port
- 19.0 mm
- Capacity class (tons)
- 10+5
- Cylinder bore diameter
- 44.0 mm
- Distance fixing holes
- 36.5 mm
- Height, extended
- 67.0 mm
- Height, retracted
- 42.0 mm
- Oil capacity
- 29.0 cm³
- Operating pressure, max.
- 700.0 bar
- Plunger diameter
- 38.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Saddle protrusion from plunger
- 1.0 mm
- Stroke
- 13.0 mm
