Description

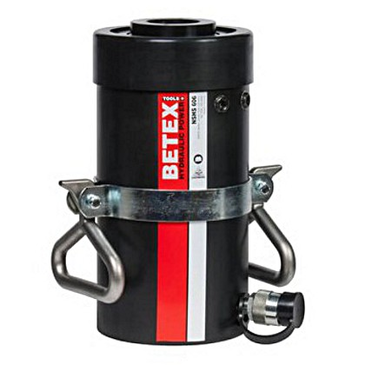

BETEX NSHS Hollow-piston cylinder, single-acting, spring return, 60T class
Betex
NSHS-606
Hydraulic cylinder, 700 bar
od EUR 5,032.48z VAT
netto EUR 4,091.45 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSHS-606—
EUR 5,032.48
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSHS-606#N
EAN4064328821194
Masa34.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSHS-606#N
- EAN
- 4064328821194
Dimensions
- Outside diameter D
- 158.6 mm
- Mass
- 34.00 kg
Full manufacturer specification24 parameters · expand
- Advance force, max.
- 627.0 kN
- Base mounting holes, bolt circle
- 130.0 mm
- Base mounting holes, thread (UNC)
- 1/2"-13 UN
- Base mounting holes, thread depth
- 14.0 mm
- Base to advance port
- 32.0 mm
- Capacity class (tons)
- 60
- Center hole diameter
- 54.0 mm
- Collar thread (UN)
- 6¼"-12 UN
- Collar thread, length
- 50.0 mm
- Cylinder bore diameter
- 125.0 mm
- Effective piston area
- 89.6 cm²
- Height, extended
- 475.5 mm
- Height, retracted
- 323.5 mm
- Oil capacity
- 1360.0 cm³
- Operating pressure, max.
- 700.0 bar
- Plunger diameter
- 90.0 mm
- Plunger female thread (UN)
- 2¾"-16 UN
- Plunger thread length
- 25.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Saddle diameter
- 89.0 mm
- Saddle protrusion from plunger
- 12.5 mm
- Series
- NSHS
- Stroke
- 152.0 mm
- Version
- 60T
