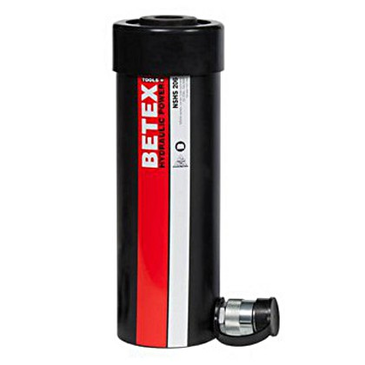

BETEX NSHS Hollow-piston cylinder, single-acting, spring return, 20T class
Betex
NSHS-206
Hydraulic cylinder, 700 bar
od EUR 1,988.18z VAT
netto EUR 1,616.41 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSHS-206—
EUR 1,988.18
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSHS-206#N
EAN4064328821156
Masa13.50 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSHS-206#N
- EAN
- 4064328821156
Dimensions
- Outside diameter D
- 98.5 mm
- Mass
- 13.50 kg
Full manufacturer specification24 parameters · expand
- Advance force, max.
- 238.0 kN
- Base mounting holes, bolt circle
- 82.6 mm
- Base mounting holes, thread (UNC)
- 3/8"-16 UN
- Base mounting holes, thread depth
- 9.4 mm
- Base to advance port
- 19.0 mm
- Capacity class (tons)
- 20
- Center hole diameter
- 27.0 mm
- Collar thread (UN)
- 3⅞"-12 UN
- Collar thread, length
- 38.0 mm
- Cylinder bore diameter
- 75.0 mm
- Effective piston area
- 34.0 cm²
- Height, extended
- 461.0 mm
- Height, retracted
- 306.0 mm
- Oil capacity
- 527.0 cm³
- Operating pressure, max.
- 700.0 bar
- Plunger diameter
- 55.0 mm
- Plunger female thread (UN)
- 1 9/16"-16 UN
- Plunger thread length
- 25.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Saddle diameter
- 54.0 mm
- Saddle protrusion from plunger
- 7.0 mm
- Series
- NSHS
- Stroke
- 155.0 mm
- Version
- 20T
