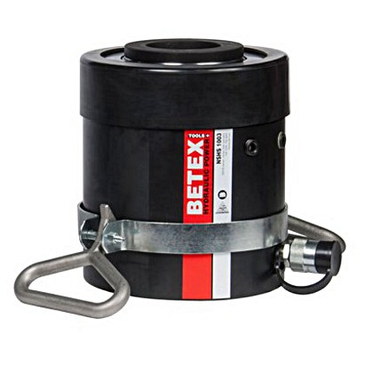

BETEX NSHS Hollow-piston cylinder, single-acting, spring return, 100T class
Betex
NSHS-1003
Hydraulic cylinder, 700 bar
od EUR 6,019.28z VAT
netto EUR 4,893.72 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSHS-1003—
EUR 6,019.28
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSHS-1003#N
EAN4064328821200
Masa50.10 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSHS-1003#N
- EAN
- 4064328821200

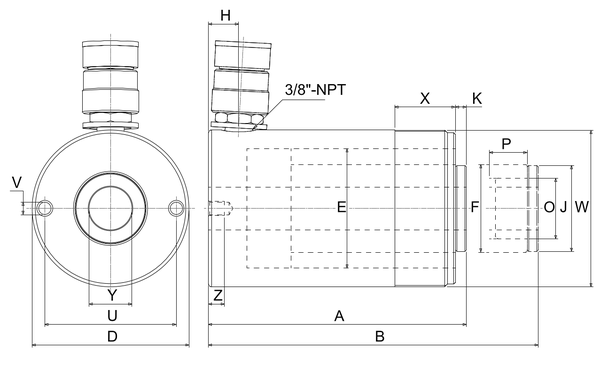

Dimensions
- Outside diameter D
- 213 mm
- Mass
- 50.10 kg
Full manufacturer specification24 parameters · expand
- Advance force, max.
- 1001.0 kN
- Base mounting holes, bolt circle
- 178.0 mm
- Base mounting holes, thread (UNC)
- 5/8"-11 UN
- Base mounting holes, thread depth
- 19.0 mm
- Base to advance port
- 38.0 mm
- Capacity class (tons)
- 100
- Center hole diameter
- 79.0 mm
- Collar thread (UN)
- 8 3/8"-12 UN
- Collar thread, length
- 60.0 mm
- Cylinder bore diameter
- 165.0 mm
- Effective piston area
- 143.0 cm²
- Height, extended
- 330.0 mm
- Height, retracted
- 254.0 mm
- Oil capacity
- 1085.0 cm³
- Operating pressure, max.
- 700.0 bar
- Plunger diameter
- 125.0 mm
- Plunger female thread (UN)
- 4"-16 UN
- Plunger thread length
- 30.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Saddle diameter
- 125.0 mm
- Saddle protrusion from plunger
- 12.0 mm
- Series
- NSHS
- Stroke
- 76.0 mm
- Version
- 100T
