Description

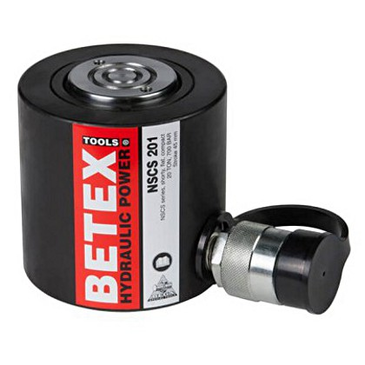

BETEX NSCS Compact cylinder, short stroke, single-acting, spring return, 20T class
Betex
NSCS-201
Hydraulic cylinder, 700 bar
od EUR 705.74z VAT
netto EUR 573.77 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSCS-201—
EUR 705.74
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSCS-201#N
EAN4064328866324
Masa5.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
23 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSCS-201#N
- EAN
- 4064328866324
Dimensions
- Outside diameter D
- 97 mm
- Mass
- 5.00 kg
Full manufacturer specification17 parameters · expand
- Advance force, max.
- 198.0 kN
- Base to advance port
- 17.5 mm
- Capacity class (tons)
- 20
- Cylinder bore diameter
- 60.0 mm
- Height, extended
- 143.0 mm
- Height, retracted
- 98.0 mm
- Oil capacity
- 127.0 cm³
- Operating pressure, max.
- 700.0 bar
- Piston mounting holes, bolt circle
- 39.0 mm
- Piston protrusion
- 3.0 mm
- Plunger diameter
- 50.8 mm
- Plunger female thread
- M5
- Plunger thread length
- 9.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Series
- NSCS
- Stroke
- 45.0 mm
- Version
- 20T
